Golden Laser invites you to attend The 2016 SGIA Expo – Specialty Printing & Imaging Technology
Booth Number: 3601
September 14-16
Las Vegas Convention Center – Central 3150 Paradise Rd, Las Vegas, Nevada 89109
Exhibiting Equipment:

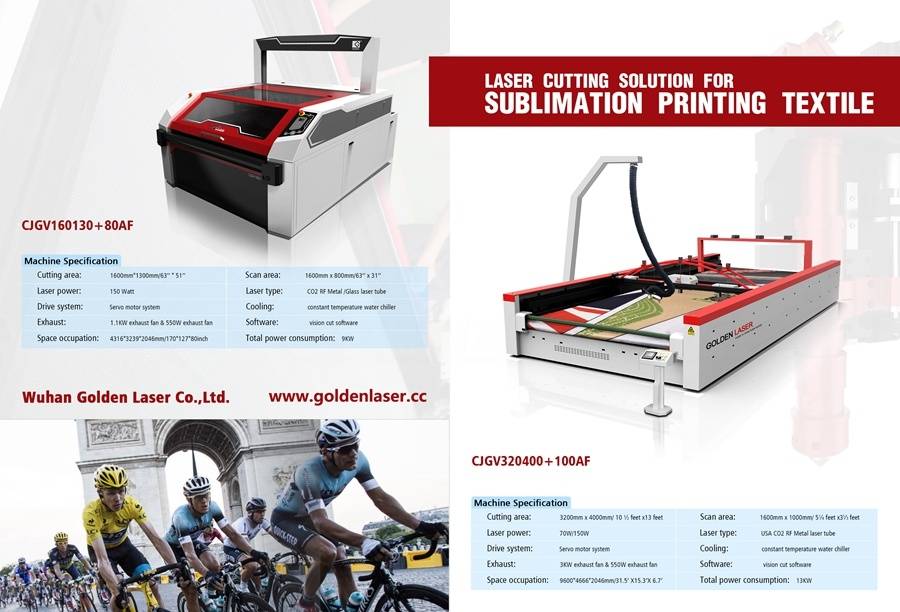

I. Wide Format Laser Cutter for Textile Printed Graphics CJGV-320400LD
Applications → Big graphics / Outdoor display / Flags / Banners / Promotional textile
Features
• Non-contact process in distortion free cutting quality
• 10.5 feet width continuous cutting over 32 feet length graphics
• No limitation of shapes
• Live cut to compensate the sublimation shrinkage defects
| Specification | |||
| Cutting Area | 3200mm×4000mm (126″× 157″) | Scan Area | 1600mm×1000mm (63″×39″) |
| Laser Type | CO2 RF metal laser tube | Laser Power | 70 Watt / 150 Watt |
| Motion System | Servo motor system | Cooling System | Constant temperature water chiller |
| Exhaust System | 3KW exhaust fan, 550W exhaust fan | Software | Vision CUT |
| Space Occupation | 9600mm×4666mm×2046mm (378″× 184″× 80″) | Total Power Consumption | 13KW |
II. Top Speed Sublimation Printing Garments Automatic Laser Cutter CJGV-160130LD+80AF
Applications → Cycling jersey / Swimwear / Football / basketball / hockey player wear / Cheer wear / Customized teamwear
Features
• Top speed cutting. Over 500 sets per shift per day
• Distortion compensation
• High precision ±0.5mm
• UL / CSA / FDA standard
| Specification | |||
| Cutting Area | 16mm×1300mm (63″× 51″) | Scan Area | 1600mm×800mm (63″×31″) |
| Laser Type | CO2 RF metal laser tube / CO2 glass laser tube | Laser Power | 150 Watt |
| Motion System | Servo motor system | Cooling System | Constant temperature water chiller |
| Exhaust System | 1.1KW exhaust fan, 550W exhaust fan | Software | Golden Laser |
| Space Occupation | 4316mm×3239mm×2046mm (170″× 127″× 80″) | Total Power Consumption | 9KW |
