Automatic Inkjet Marking Machine for Footwear
The Golden Laser Automatic Inkjet Marking Machine is an intelligent marking solution specially designed for precise line marking on shoe components. Integrating vision recognition, automatic positioning, high-speed inkjet marking, drying, and conveyor-based collection, the system is ideal for processing PU, microfiber, genuine leather, textiles, and various footwear materials.
Compared with traditional manual marking, the machine significantly reduces labor dependency while improving productivity, consistency, and manufacturing automation for modern footwear factories.
- Working Area: 1200mm × 900mm (47.2" × 35.4")
- Nozzle Types: Pneumatic, Motorized, Scanning
Key Features
Discover the key advantages of our laser systems, designed for precision, automation, and efficiency
Fully Automated Conveyor Workflow

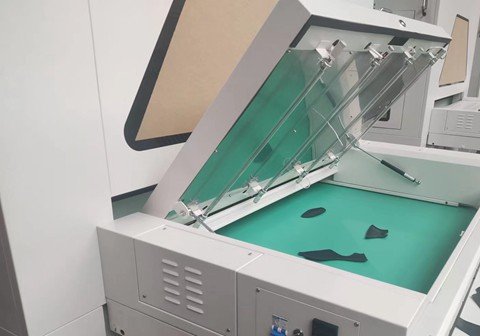

The machine integrates feeding, recognition, inkjet marking, drying, and collection into a continuous automated workflow for simplified operation and higher production efficiency.

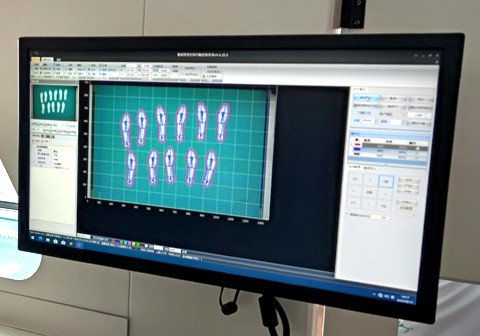

Intelligent Vision Recognition System
Equipped with a 24-megapixel industrial camera, the system automatically identifies different shoe materials and precisely positions marking patterns. Left/right shoe recognition and mirror matching are supported.
Dual-Gantry, Independent Dual-Head Operation
The dual-gantry design allows two independent inkjet heads to operate simultaneously, significantly increasing marking speed and efficiency, ideal for high-volume production.
Mixed-Part Recognition Capability
Different shapes and component types can be loaded together. The software automatically identifies templates and performs accurate marking for flexible production.
High-Speed Precision Inkjet Technology
Featuring a high-frequency industrial inkjet head, the system delivers fine and consistent marking dots with adjustable dot size, compatible with disappearing ink, fluorescent ink, and other specialty inks.
High-Precision Motion Control
Powered by imported servo motion modules and synchronous belt transmission, the machine provides high-speed operation, excellent stability, and repeat positioning accuracy up to ≤0.1mm.
Machine Structure
An Integrated System Designed for Intelligent Operation and Consistent Performance
01
Loading Area
Easy placement of parts on the conveyor belt. Manual or automatic loading is available.
02
Industrial camera captures the shape, matches the DXF template, and the high-speed inkjet head draws lines accurately.
Benefits
1. Higher Productivity
Daily output can reach 25,000–40,000 pieces, significantly outperforming manual marking processes.
2. Reduced Labor Costs
Only 1–2 operators are required, replacing 3–4 skilled workers.
3. Consistent Marking Quality
Vision-guided positioning and automated inkjet control ensure stable and repeatable marking quality.
4. Fast Return on Investment
The system helps reduce labor, consumables, and operational costs, enabling rapid ROI for footwear manufacturers.
Technical Specifications
Explore detailed specifications to better understand performance, speed, and compatibility.
| Model No. | JYBJ-12090LD | ||
|---|---|---|---|
| Working Area | 1200mm × 900mm (47.2" × 35.4") | ||
| Working Table | Rubber Belt Conveyor | Working Table Height | 750mm |
| Max Movement Speed | 2000 mm/s | Acceleration | 20,000 mm/s² |
| Recognition Angle | 360° Arbitrary Rotation | ||
| Repeat Positioning Accuracy | ≤ 0.1 mm | ||
| Repeat Recognition & Marking Accuracy | ≤ 0.5 mm | ||
| Motion System | Synchronous Belt Module Transmission | ||
| Control System | Servo Control System | ||
| Vision System | 24-Megapixel Industrial Camera | ||
| Power Supply | AC220V±5% 50/60Hz | Total Power | 5KW |
| Supported File Formats | AI, PLT, DXF, BMP, DST | ||
Application Sectors
Suitable Materials
- PU synthetic leather
- Microfiber materials
- Genuine leather
- Mesh fabrics
- Shoe textiles
- Functional footwear materials
- Shoe upper components
Applicable Industries
- Sports footwear manufacturing
- Casual shoe production
- Outdoor footwear production
- Safety shoe manufacturing
- Shoe material processing factories
- Shoe upper processing workshops
