Camera Registration Laser Cutter
Numbers, letters, and logos are easily deformed during sublimation printing. GoldenCAM high precision vision recognition system, with high precision registration marks positioning and intelligent deformation compensation algorithm provided by the software to complete the precision cutting of various high-demand dye sublimation printed products.
- Working area: 1500mm×900mm (Customizable)
- Laser power: 150 Watt, 200 Watt, 300 Watt
- Cutting speed: 0-1000 mm/s
- Acceleration: 6000 mm/s²
Features
Discover the key advantages of our laser cutting systems, designed for precision, automation, and efficiency
High-Precision CCD Camera Recognition
GoldenCAM uses a high-resolution CCD camera to detect registration marks and capture contours in real time. It automatically aligns the cutting path with printed graphics, ensuring high accuracy even for complex shapes. This eliminates manual positioning errors, reduces setup time, and delivers consistent cutting quality across batches for applications like sportswear, labels, and patches.
Smart Distortion Compensation
GoldenCAM automatically compensates for distortion caused by sublimation, heat transfer, or fabric elasticity. It analyzes the actual printed shape and adjusts the cutting path accordingly. This ensures accurate contour cutting without manual correction, reduces material waste, and maintains consistent results when processing stretch or unstable materials.
High-Speed Production Performance
Equipped with a servo-driven system and optimized laser control system, the machine achieves cutting speeds up to 1000 mm/s with stable performance. It maintains precision at high speed, enabling higher throughput and shorter lead times. This makes it ideal for large-scale production and businesses aiming to improve efficiency.
User-Friendly Software
GoldenCAM software offers automatic contour detection, one-click processing, and real-time preview. Its intuitive interface allows quick setup with minimal training. It supports multiple file formats and integrates with digital printing workflows, helping reduce errors and improve overall production efficiency.
Roll-to-Roll Processing (Optional)
With an optional auto feeder, the laser cutter supports continuous roll-to-roll processing. It ensures synchronized feeding and cutting while maintaining stable material tension. This reduces manual handling, minimizes downtime, and improves productivity, making it ideal for textile, sportswear, and label production.
Wide Material Compatibility
The laser cutting machine processes a wide range of non-metal materials, including polyester, spandex, leather, labels, and printed fabrics. The non-contact laser cutting ensures clean, sealed edges without fraying or deformation. This versatility supports diverse applications from fashion and sportswear to industrial textiles.
Benefits
The innovation for laser cutting of small-sized and intricate sublimated fabrics, textiles and twill letters
- Precision laser cutting - Registration marks identification
- High-speed linear guide, high-speed servo drive
- Cutting speed: 0~1,000 mm/s
- Acceleration speed: 0~10,000 mm/s2
- Tolerance: 0.3mm~0.5mm

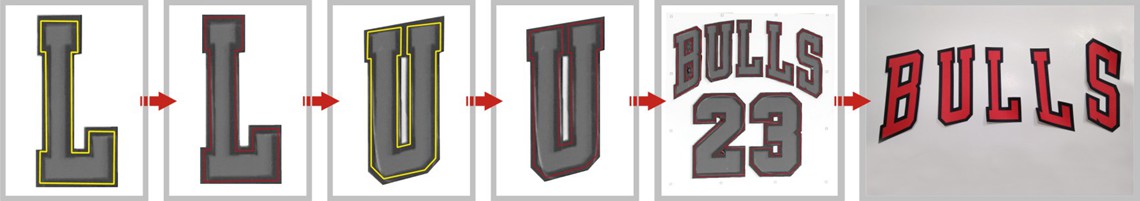

How GoldenCAM Works?
Fully automatic machining process for the GoldenCAM laser cutting machine

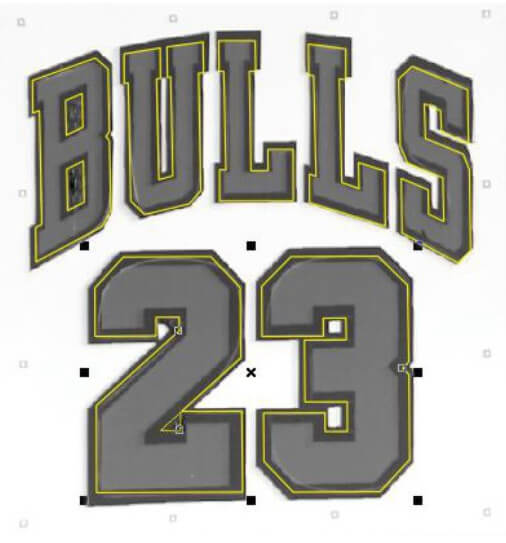

The yellow line is the cutting path of the original design, and the black contour is the actual print contour with distortion during sublimation. If cut according to the original graphics, the finished product will be defective. How to cut out the precise shape?
Software for deformation compensation and correction. The red line represents the path after the software compensates for the deformation. Laser machine cuts accurately along the corrected pattern.
Videos
Watch our machines in action and see how laser cutting transforms production workflows
Technical Specifications
Explore detailed specifications to better understand performance, speed, and compatibility.
| Model No. | ZDJG-160100LD | ||
|---|---|---|---|
| Laser type | CO2 glass laser / CO2 RF metal laser | ||
| Laser power | 150W, 200W, 300W | ||
| Working area | 1600mm×1000mm / 62.9″×39.3″ | ||
| Recognition mode | CCD camera recognition | ||
| Working table | Conveyor working table | ||
| Cutting speed | 0~1000mm/s | ||
| Software | GoldenCAM | ||
| Cooling system | Constant temperature water chiller | ||
| Exhaust system | 1.1KW Exhaust fan × 2, 550W Exhaust fan × 1 | ||
| Power supply | AC220V±5% 50/60Hz, single phase | ||
| Graphic format supported | AI, PLT, DXF, BMP, DST | ||
| Options | Auto feeder, red dot positioning | ||
Application Sectors
Dye sublimation printed logos, numbers, letters, , tackle twill logos, numbers, letters, patches, Symbols, crests, etc.
