CO2 Galvo Laser Engraving Machine
Dynamic focus Galvo scanners with processing area up to 450×450 mm;
The Galvo head is adjustable according to the materials size you process;
You can reach different laser beam size by adjusting the Galvo height;
The shuttle working table makes easy for materials loading and cutting pieces connection.
- Laser Type: CO2 RF Metal Laser
- Laser Power: 150 Watt, 300 Watt, 600 Watt
- Working Area: 900mm × 450mm
- Galvo Scan Area: Up to 450 × 450 mm
Features
Discover the key advantages of our laser systems, designed for precision, automation, and efficiency
3D Dynamic Focus Galvo System
Advanced 3-axis dynamic focusing technology ensures consistent beam quality across the entire working area, enabling precise engraving and cutting even varying thickness materials.
Ultra-High Processing Speed
With marking speeds up to 10,000 mm/s, the Galvo system is significantly faster than traditional gantry laser systems, making it ideal for mass production and high-efficiency processing.

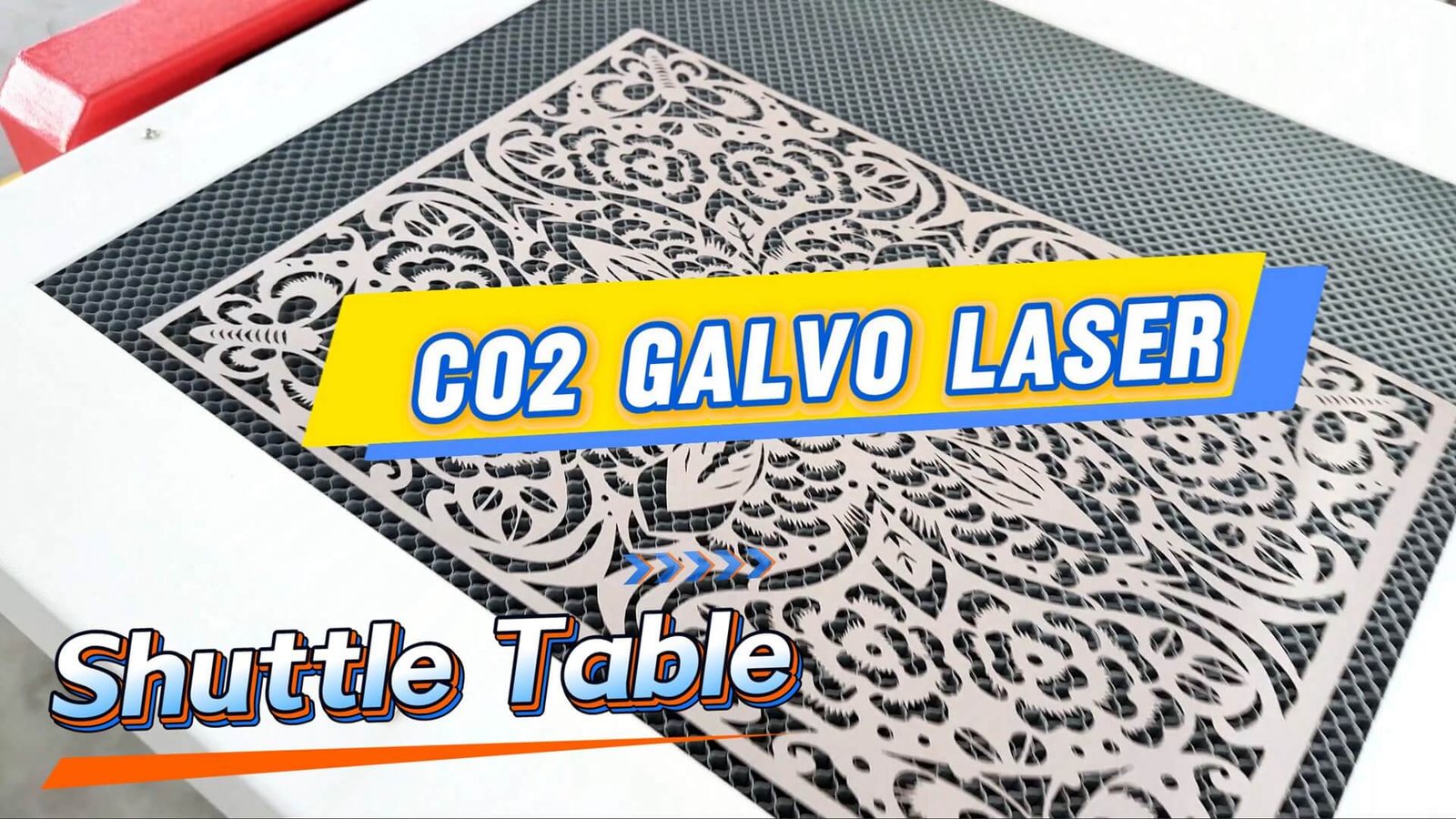

Shuttle Working Table for Continuous Production
The dual-station shuttle table allows simultaneous loading and processing, greatly improving workflow efficiency and minimizing downtime.
Automatic Z-Axis Adjustment
The automatic up-and-down Z-axis adjusts focal length based on material thickness, ensuring optimal laser performance without manual calibration.
High Stability Optical Component
Adopts a high-quality CO₂ RF metal laser source and optimized optical path design, ensuring stable output, long service life, and consistent processing quality.
Fully Enclosed & Safe Design
The enclosed structure combined with an efficient exhaust system (localized rear-suction system) ensures safe operation while effectively removing smoke and dust during processing.
Videos
Watch our machines in action and see how laser cutting transforms production workflows
Configurable Options
Tailor your system with functional modules to meet specific production requirements and enhance processing automation
Roll-to-Roll Feeding Unit
This system supports continuous processing of roll materials by integrating automatic unwinding, tension control, and rewinding. It significantly improves productivity and is ideal for flexible materials like stencils, films, and labels.
CCD Vision System
Equipped with a high-resolution CCD camera, this system enables precise recognition of printed patterns, contours, and registration marks. It ensures accurate alignment between the laser path and the material, making it ideal for printed textiles, labels, and patterned materials.
Red Light Positioning System
The red light pointer provides a clear visual guide of the laser path before processing. This allows operators to quickly verify positioning and layout, reducing setup time and minimizing material waste.
Technical Specifications
Explore detailed specifications to better understand performance, speed, and compatibility.
| Model No. | ZJ(3D)-9045TB | ||
|---|---|---|---|
| Laser type | CO2 RF metal laser | ||
| Laser power | 150W, 300W, 600W | ||
| Working table | Automated shuttle Zinc-Iron alloy honeycomb working table | ||
| Working area | 900mm × 450 mm | ||
| Motion system | 3D dynamic Galvo control system | ||
| Positioning accuracy | ±0.1mm | ||
| Cooling system | Constant temperature water chiller | ||
| Power supply | AC220V±5% 50/60Hz | ||
| Graphic format supported | AI, PLT, DXF, BMP, DST | ||
Application Sectors
Versatile Applications Across Multiple Industries and Flexible Material Processing
Processing Capabilities
- Laser Engraving
- Laser Marking
- Laser Cutting Thin Materials
- Micro-perforation
- Laser Kiss-cutting
Industries
HTV & Lettering Film: Optimized for high-speed “Kiss-cutting” of heat transfer vinyl (HTV), reflective films, and twill, ensuring easy weeding of even the most complex logos.
Leather Patches & Labels: Deep engraving and contour cutting for denim back-waist labels, synthetic leather patches, and branded garment accessories.
Textile Perforation: Creating breathable patterns and micro-ventilation holes for high-performance sportswear.
Precision Perforation: Achieve high-density, micro-ventilation holes on sports shoe uppers and sneakers with consistent hole quality.
Intricate Leather Engraving: Decorative etching and hollowing-out on natural leather, PU, and microfiber for luxury footwear and sandals.
Vamp & Tongue Cutting: Rapid contour cutting of shoe tongues, vamps, and decorative overlays with clean, sealed edges.
-
Industrial Films & Foils: High-speed processing of PET, Polyimide (PI), and other high-performance films used in electronics and insulation.
- Stencils：Precision cutting of Mylar, Polypropylene, and thin plastic films for industrial marking, spray-painting templates, and artistic stencils.
-
Gaskets & Seals: Precision cutting of rubber, silicone, and compressed fiber gaskets for mechanical and automotive applications.
-
Abrasive Materials: Rapid etching and cutting of sandpaper and abrasive discs, maintaining high edge quality without tool wear.
-
Technical Textiles: Fine-tuned perforation and marking of specialized mesh, fleece, and reinforced fabrics used in filtration and safety gear.
-
Heat Insulation Components: Processing of non-metallic thermal shielding materials for consistent, repeatable results.
Acrylic & Plastic Signage: Precise marking of PMMA (Acrylic), ABS, and double-color boards for trophies, display stands, and decorative signage.
Wooden Crafts & Art: Intricate etching on plywood, MDF, bamboo, and balsa wood. Perfect for photo frames, personalized gifts, and architectural models.
Paper Art & Packaging: High-speed laser hollowing for luxury wedding invitations, 3D pop-up cards, and intricate packaging prototypes.
Sample Gallery
Browse real samples produced by our systems to see the quality and versatility of laser cutting
Interested in this laser solution?
If you need any further information or a detailed estimate, do not hesitate to contact one of our experts who will offer you the solution that best suits your needs and will guide you through the purchase process.
