Flatbed CO2 Laser Cutting Machine for Filter Cloth
High precision rack and pinion. Cutting speed up to 1200mm/s, the ACC up to 8000mm/s2, maintain long-term stability. World-class CO2 metal RF lasers. Vacuum conveyor working table. Automatic feeding, tension correction, for continuous feeding and cutting.
- Laser type: CO2 RF laser
- Laser power: 150W, 300W, 600W, 800W
- Working area: 0~1,200mm/s
- Application: Filter cloth materials and industrial fabrics laser cutting
Laser Cutting Machine for Filter Cloth Production
GOLDEN LASER JMC SERIES Large Format CO2 Laser Cutter - High Precision, Fast, Highly Automated

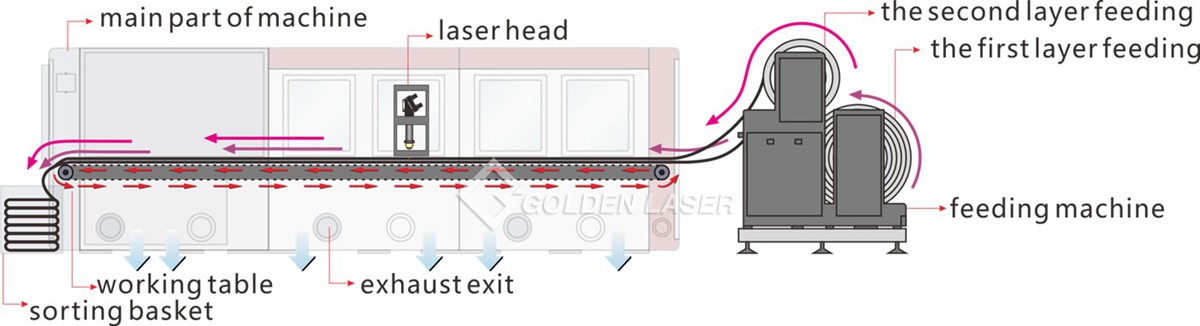

Laser automatic processing flow
Our high-standard manufacturing of CO2 laser cutting machines, multi-functional expansion, configuration of automatic feeding and sorting systems, research and development of practical software… All in order to provide customers with high production efficiency, optimized production process, saving economic costs and time costs, and maximize the benefits.
Watch JMCCJG Laser Cutting Machine for Filter Cloth in Action
Technical Specifications
Main Technical Parameter of JMCCJG350400LD Industrial CO2 Laser Cutting Machine
| Model No. | JMCCJG350400LD |
|---|---|
| Laser type | CO2 RF laser tube |
| Laser power | 150W / 300W / 600W / 800W |
| Working area | 3.5m×4m (137"×157") |
| Working table | Vacuum conveyor working table |
| Motion system | Gear and rack driven, Servo motor |
| Cutting speed | 0-1,200mm/s |
| Acceleration | 8,000mm/s2 |
| Repeat positioning accuracy | ±0.03mm |
| Positioning accuracy | ±0.05mm |
| Graphic format supported | PLT, DXF, AI, DST, BMP |
| Power supply | AC380V±5% 50/60Hz 3Phase |
Superiorities of JMC Series CO2 Laser Cutter Machine
Optional extras simplify the processing production and increase the possibilities
1. Fully enclosed structure
Large format laser cutting bed with fully enclosed structure to ensure the cutting dust does not leak, suitable for operation in the intensive production plant.
In addition, the user-friendly wireless handle can realize remote operation.

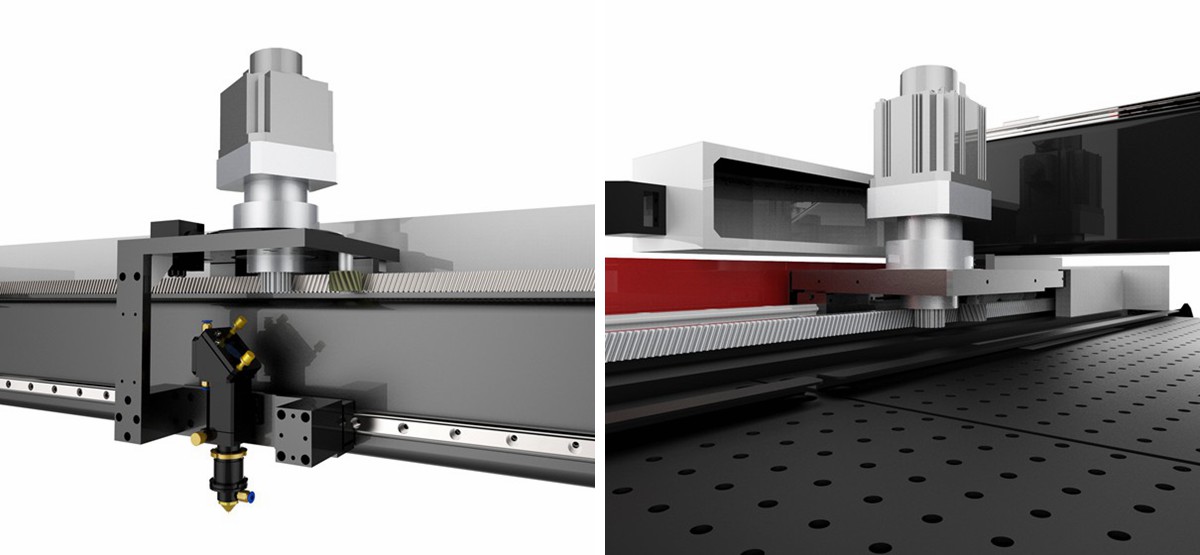

2. Gear & Rack driven
High-precision Gear & Rack driving system. High speed. Cutting speed up to 1200mm/s, acceleration 8000mm/s2, and can maintain long-term stability.
- High level of precision and repeatability
- Ensure excellent cutting quality
- Durable and powerful. For your 24/7h production
- Service life longer than 10 years
3. Feeding system
Auto-feeder specification:
The width of single roller range from 1.6 meters ~ 8 meters; the maximum diameter of roll is 1 meter; Affordable weight up to 500 KG.
Auto-induction feeding by cloth inductor; Right-and-left deviation correction; Material positioning by edge control.

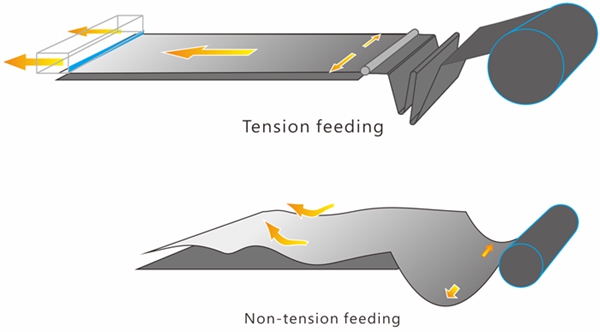

No tension feeder will easy to distort the variant in the feeding process, resulting the ordinary correction function multiplier;
Tension feeder in a comprehensive fixed on both sides of the material at the same time, with automatically pull the cloth delivery by roller, all process with tension, it will be perfect correction and feeding precision.

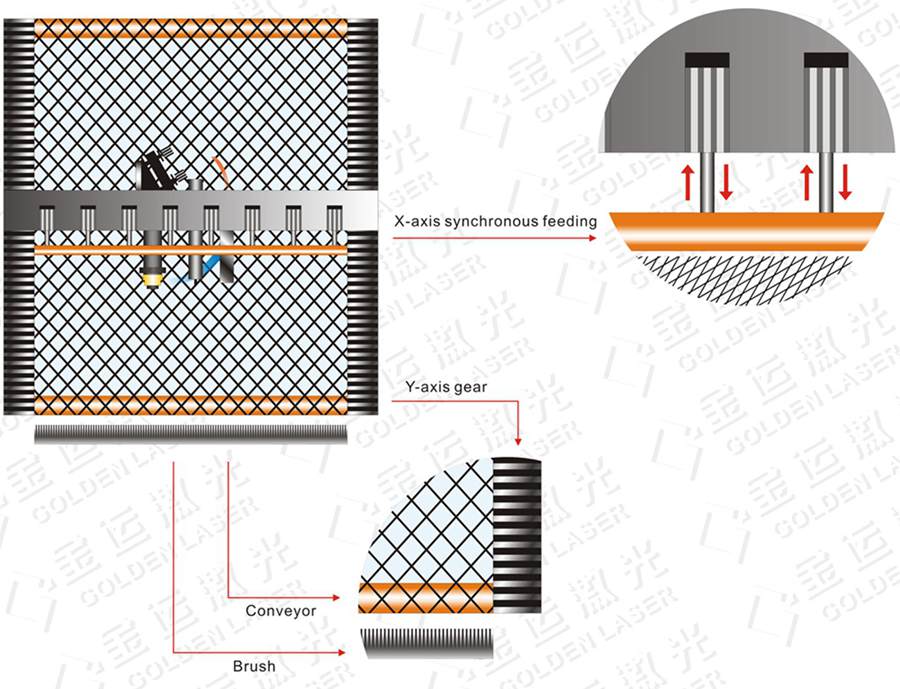

X-axis synchronous feeding
4. Exhaust and filter units
Advantages:
- Always achieve maximum cutting quality
- Different materials apply to different working tables
- Independently control of the upward or downward extraction
- Suction pressure throughout the table
- Ensure optimal air quality in the production environment

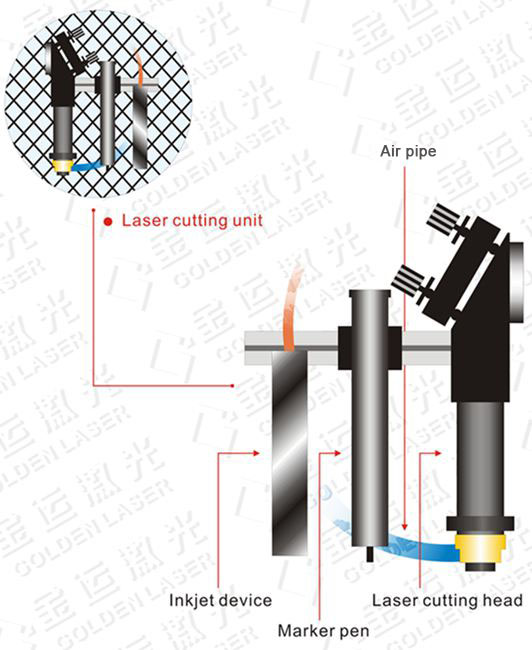

5. Marking systems
According to customer requirements, a contactless ink-jet printer device and a mark pen device can be installed on the laser head to mark the filter material, which is convenient for later sewing.
Functions of ink-jet printer:
1. Mark figures and cut edge accurately
2. Number off-cut
Operators can mark on off-cut with some information such as off-cut size and mission name
3. Contactless marking
Contactless marking is the best choice for sewing. The precise location lines make subsequent work more easily.
6. Customizable cutting areas
2300mm×2300mm (90.5in×90.5in), 2500mm×3000mm (98.4in×118in), 3000mm×3000mm (118in×118in), 3500mm×4000mm (137.7in×157.4in) Or other options. The largest working area is up to 3200mm×12000mm (126in×472.4in)
Filter materials cut by laser
Filtration as an important environmental and safety control process generally sorted as gas-solid separation, gas-liquid separation, solid-liquid separation, solid-solid separation. Usually laser processing filter cloth is mainly made of technical textile.
It costs much time by traditional processing such as die cutting and CNC cutting. On one hand, traditional cutting always cause rough edges which affect next steps. On the other hand, long time cutting cause tool wear, and it cost time to replace them. Besides, die cutting need preparing die tools. But laser processing could almost avoid all these defects, processing design figures freely by very easy adjustment.
Filter materials (filter fabrics and filter mats) suitable for laser cutting:
Polyester, Polypropylene (PP), Polyurethane (PU), Polyethylene (PE), Polyamide (Nylon), Filter Fleece, Foam, Nonwoven, Paper, Cotton, PTFE, Fiberglass (fiberglass, glass fiber) and other industrial fabrics.
