Galvo Gantry Laser Perforating and Cutting Machine with Camera
This laser cutting system seamlessly combines the precision of Galvo and the versatility of Gantry, offering high-speed performance for a diverse range of materials while also optimizing space utilization with its multi-functional capabilities.
Additionally, its adaptability to integrate different vision camera systems allows for automatic recognition of contours and precise edge-cutting for printed materials. This capability enhances efficiency and accuracy, particularly in the fashion and digital printing (dye-sublimation) fabric applications.
- Working area: 1700mmx2000mm
- Laser type: CO2 glass laser / CO2 RF metal laser
- Laser power: 150 Watt, 200 Watt, 300 Watt
- Galvo scanning speed: 0-8000mm/s
- XY Gantry motion speed: 0-800mm/s
This laser system combines the precision of Galvo and the versatility of Gantry, offering high-speed performance for a diverse range of materials. With a processing format of 1700mm x 2000mm (customizable on demand), an optional auto-feeder, and laser power options ranging from 150W to 300W, the machine ensures powerful and customizable performance.
The integrated camera systems, alongside features like a gear and rack drive structure, automatic switching between galvanometer and gantry modes, and a conveyor system, contribute to a seamless and efficient workflow.
This machine is designed for multifunctionality, efficiency, and precision in every detail. Ideal for the fashion industry, digital printing and technical textiles applications, this innovative laser solution elevates manufacturing capabilities to new heights.
Highlights of the Machine Structure
The Galvo & Gantry integrated design allows the machine to seamlessly transition between two distinct motion control systems: the galvanometer system and the gantry system.
1. Galvanometer System
The galvanometer system is known for its high-speed and precision in controlling the laser beam. It employs a set of mirrors that can rapidly reposition to direct the laser beam across the material surface. This system is exceptionally effective for intricate and detailed work, providing swift and accurate laser movements for tasks such as perforating and fine cutting.
2. Gantry System
On the other hand, the gantry system involves a larger-scale motion control mechanism, typically consisting of a gantry structure with a moving laser head. This system is advantageous for covering larger surface areas and is well-suited for applications that require broad, sweeping movements.

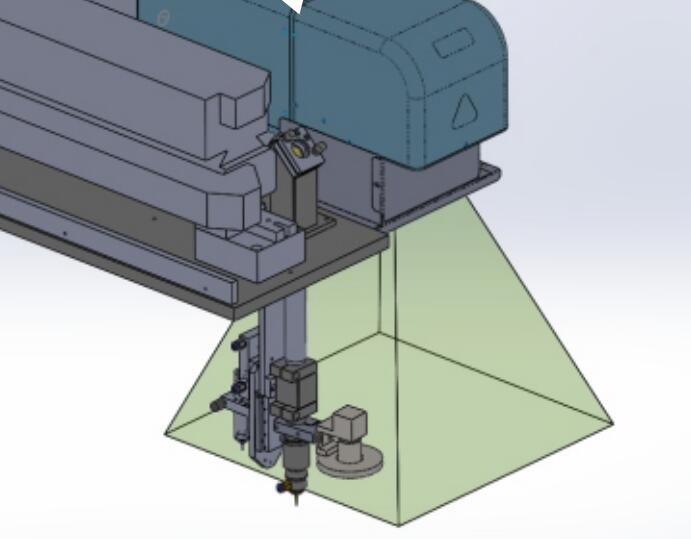

Automatic Switching Mechanism
The brilliance of the automatic switching feature lies in its ability to seamlessly transition between these two systems based on the specific requirements of the job at hand. This feature is often software-controlled and can be programmed to engage the galvanometer system for intricate detailing and then switch to the gantry system for broader, less detailed tasks, all without manual intervention.
Features
Discover the key advantages of our laser cutting systems, designed for precision, automation, and efficiency
Dual-Side Rack & Pinion Drive
Engineered with a high-speed, dual-sided rack-and-pinion transmission. This guarantees synchronized, vibration-free movement and exceptional positioning accuracy across large working areas.
Dynamic Galvo-Gantry Switching
Features a 3-axis dynamic Galvo system for ultra-fast perforation and fine detail engraving. The intelligent controller seamlessly toggles between the Galvo scanning head and the XY gantry, maximizing throughput without manual intervention.
Full-Format Vision Recognition
Equipped with a high-resolution industrial camera that instantly captures the entire cutting bed. It accurately identifies printed contours and registration marks, automatically compensating for material distortion to ensure perfect cut alignment.
Proprietary Closed-Loop Control
Powered by our patented motion control algorithms. This closed-loop system provides real-time position feedback and instant error correction, ensuring absolute precision even at top operational speeds.
Synchronized Fume Extraction
An innovative distributed exhaust mechanism travels alongside the cutting head. By applying localized, high-vacuum suction directly at the source, it rapidly clears smoke and particulates, keeping both the materials and the workspace exceptionally clean.
Precision-Milled Heavy-Duty Bed
Built on a reinforced, heavily welded chassis machined by a large-scale CNC gantry milling center. This exceptionally rigid structure eliminates deformation, absorbs vibration, and ensures long-term reliability under 24/7 industrial workloads.
Videos
Watch our machines in action and see how laser cutting transforms production workflows
Technical Specifications
Explore detailed specifications to better understand performance, speed, and compatibility.
| Model No. | ZDJMCZJJG(3D)-170200LD | ||
|---|---|---|---|
| Laser type | CO2 RF metal laser | ||
| Laser power | 150W, 200W, 300W | ||
| Working table | Vacuum conveyor working table | ||
| Working area | 1700mm×2000mm / 66.9”×78.7” (customizable) | ||
| Cutting system | X-Y gantry | ||
| Perforation/marking system | Galvo scanning system | ||
| Drive System | X & Y-Axis Rack & Pinion Drive, YASKAWA Servo Motors, ABBA Linear Guide | ||
| Software | Golden Laser Marking and Cutting Software | ||
| Cooling system | Constant temperature water chiller | ||
| Exhaust system | 3KW exhaust fan x 2, 550W exhaust fan x 1 | ||
| Power supply | AC380V±5% 50/60Hz, 3 phase / AC220V±5% 50/60Hz, single phase | ||
| Graphic format supported | AI, PLT, DXF, BMP, DST | ||
| Options | Auto feeder, red dot positioning | ||
Application Sectors
Seamlessly combining cutting, perforating, and engraving into a single workflow for flexible materials
Optimized for high-performance apparel, this system integrates vision-guided contour cutting, breathable micro-perforation, and aesthetic engraving into a single, seamless workflow. It utilizes the intelligent vision camera to accurately scan printed patterns (such as cycling wear or jerseys) and automatically compensates for fabric stretch. Concurrently, the ultra-fast Galvo system perforates complex, localized patterns for ventilation and engraves intricate designs for customized styling, delivering a multi-process, ready-to-sew final product in record time.
Engineered for the rapid micro-perforation and seamless large-format cutting of textile ducts. The galvo system drills thousands of precise ventilation holes in seconds, while the laser’s heat automatically seals the edges to prevent fraying, ensuring optimal airflow dynamics.
Engineered for the high-volume processing of automotive seat covers, floor mats, and airbags. The integrated system flawlessly handles genuine leather and synthetic upholstery, offering rapid micro-perforation for ventilated seats and precise contour cutting that meets the strict safety and aesthetic standards of the automotive industry.
An ideal solution for high-speed punching, intricate engraving, and cutting of knitted shoe uppers, genuine leather, and synthetic materials. It delivers complex, breathable hole designs and precise shapes in a single step, entirely eliminating the need for expensive physical cutting dies.
A robust solution for cutting large-format heavy-duty fabrics, including filtration media, outdoor awnings, and protective gear. The non-contact laser technology instantly thermally seals the edges as it cuts, completely eliminating fraying and significantly reinforcing the tear resistance and longevity of specialized industrial textiles.
