Large Format Vision Laser Cutter for Printed Textile

CJGV-320400LD

The large format vision laser cutting machine is specially designed for the digital printing industry – producing unparalleled capabilities for finishing wide format digitally printed or dye-sublimated textile graphics, banners, flags, displays, SEG fabric, lightboxes, backlit fabric and soft signage.

The Large Format Vision Laser Cutting Machine is an innovative, highly proven, unique cutting solution designed specifically for the digital print industry and print service providers. This laser cutting machine delivers unparalleled capabilities for finishing wide format digitally printed or dye-sublimated textile graphics and soft-signage with customized cutting widths and lengths. Laser systems can be produced in width up to 3.2 meters and lengths up to 8 meters.

The system is equipped with an industrial class CO2 laser for cauterized finishing of polyester textiles. This method of sealing edges lends itself to a reduction in additional finishing steps such as hemming and sewing. A sophisticated camera vision registration system (VisionLaser) is standard. VisionLaser Cutter is ideal for cutting digital printed or dye-sublimation textile fabrics of all shapes and sizes.

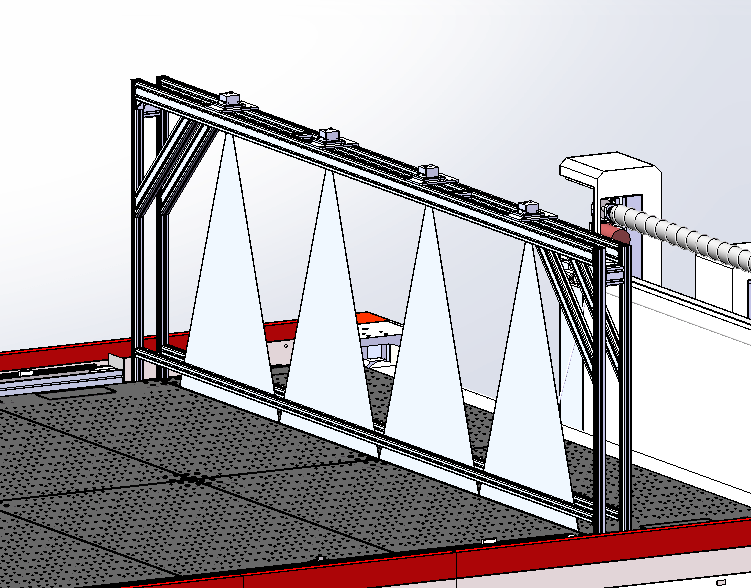

Simultaneous scanning by multiple cameras

Features

Discover the key advantages of our laser cutting systems, designed for precision, automation, and efficiency

Gear & Rack Drive

Equipped with a precision gear and rack system and synchronized dual-side drives, the machine ensures exceptional stability and high-speed motion even over the massive $3.2\text{m} \times 4\text{m}$ working area.

Multi-HD Camera

Integrated with multiple high-definition cameras, the system performs real-time visual scanning. The simultaneous feeding and scanning (Scan-on-the-Fly) technology significantly boosts production efficiency by eliminating idle time.

Seamless Grand-Format Recognition

Advanced algorithms enable seamless, continuous recognition of ultra-large graphics. This ensures zero deviation and perfect contour alignment for grand-format prints without the need for manual segmentation.

Optional Fully Enclosed Protection

An optional fully enclosed safety cover is available to provide maximum protection for operators and maintain a clean workshop environment.

Dust Extraction System

The distributed vacuum extraction structure is strategically designed to effectively capture smoke, fumes, and dust particles during the cutting process, ensuring an eco-friendly workspace.

Precision Gantry Milled Frame

Built on a heavy-duty reinforced welded bed, the structure undergoes large-scale gantry precision milling and heat treatment to guarantee long-term structural integrity and accuracy.

Videos

Watch our machines in action and see how laser cutting transforms production workflows

Technical Specifications

Explore detailed specifications to better understand performance, speed, and compatibility.

Model No.	CJGV-320400LD
Laser type	CO2 glass laser / CO2 RF metal laser
Laser power	150W, 200W, 300W
Working table	Vacuum conveyor working table
Working area	3.2m×4m (10.5 ft×13.1ft)
Camera scanning area	3.2m×1m (10.5 ft×3.2ft)
Drive System	X & Y-Axis Rack & Pinion Drive, YASKAWA Servo Motors, ABBA Linear Guide
Software	Golden Laser CAD Scanner Software Package
Cooling system	Constant temperature water chiller
Exhaust system	3KW exhaust fan × 4
Power supply	AC380V±5% 50/60Hz, 3 phase / AC220V±5% 50/60Hz, single phase
Graphic format supported	AI, PLT, DXF, BMP, DST
Options	Auto feeder, red dot positioning

Automated your cutting process for wide format digitally printed or dye-sublimated textile graphics and soft-signage

Let Golden Laser Help You Grow Your Digital Printing Business.

Application Sectors

From high-end SEG graphics to massive outdoor banners, our vision laser technology ensures precision and sealed edges for diverse applications

Laser Cutting Solutions for Grand-Format Graphics

SEG & Soft Signage
Trade Show Graphics
Flags & Banners
Home Decor
Event Backdrops
Outdoor Advertising
Backlits

Compatible Materials

Printed Textiles & Polyester Fabrics

Optimized for dye-sublimation polyester, knitted, and woven fabrics used in the soft signage industry.

SEG Graphics & Tension Media

High-precision cutting for silicone edge graphics (SEG), compensating for material stretch to ensure a perfect frame fit.

Banners, Flags & Mesh

Effortless processing of grand-format banners, teardrop flags, and breathable mesh without manual intervention.

Technical & Coated Textiles

Suitable for canvas, Oxford cloth, and PU-coated materials used in awnings, tents, and large-scale covers.

Eco-Friendly PVC-Free Media

Clean laser cauterization for next-generation sustainable advertising materials and recycled textiles.
