Precision Laser Cutting Machine
This high precision laser cutting machine with a marble working platform ensures a high degree of stability in the operation of the machine. Precision screw and full servo motor drive ensure high precision and high speed cutting. Self-developed vision camera system for cutting printed materials.
- Laser Type: CO2 glass laser / CO2 RF metal laser
- Laser Power: 30W ~ 300W
- Working area: 500x500mm / 600x600mm / 1000x800mm / 1300x900mm / 1400x800mm
- Cutting accuracy: ±0.05mm
Features
Discover the key advantages of our laser die-cutting systems, designed for precision, automation, and efficiency.
- Rigid machine tool and marble working platform ensure machine stability and effectively eliminate vibration during high-speed cutting.
- The world's top brand laser sources and optics, with superior laser spot quality, stable output power, and low maintenance costs.

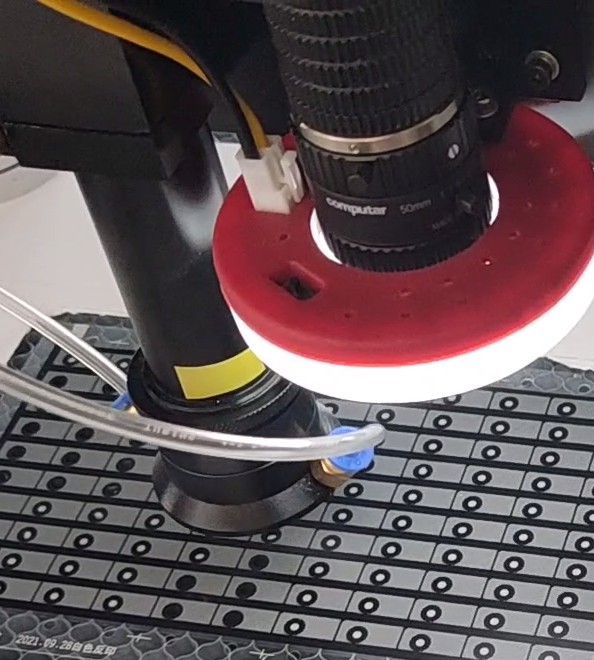

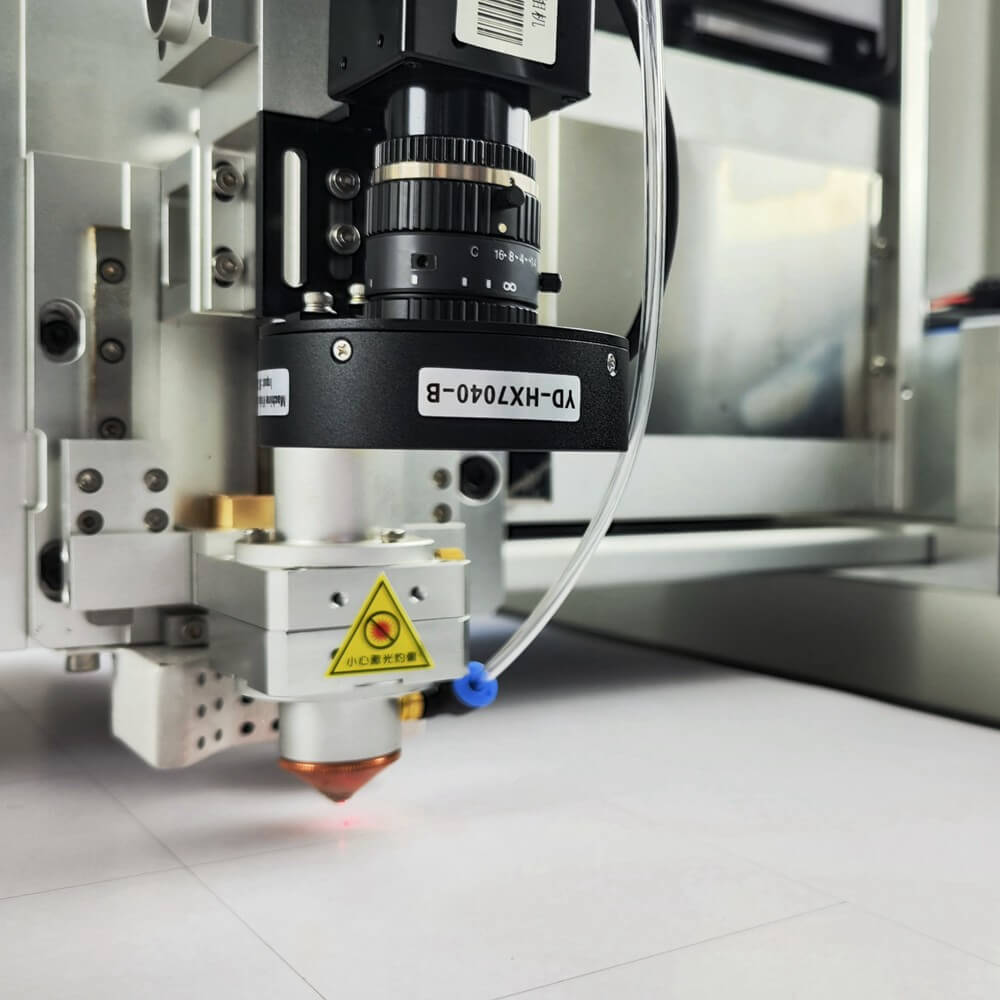

- The self-developed camera recognition system is used for precise contour cutting of printed materials.
- Precision screw and full servo motor drive ensure high precision and high speed cutting.
- The self-developed laser cutting software integrates excellent motion control performance and powerful graphics processing functions.
Machine structure
The machine adopts a fully enclosed design with front and rear flap doors or left and right moving doors to ensure operational safety and a working environment free from laser fume pollution.
Machine base frame
Steel welded base frame, ageing treatment, high precision CNC machine tool machining. The mounting surface of the guide rails is finished in cast iron to ensure the accuracy of the mounting of the motion system.
Processing mode
The laser generator is fixed; the cutting head is precisely moved by the X-Y axis gantry, and the laser beam is vertical to the surface of the raw material.
Motion control
The closed-loop multi-axis motion control system developed by Golden Laser can adjust the rotation angle of the servo motor according to the feedback data of the magnetic scale; it supports the docking of vision and MES systems.
Software Advantages
• Easy to operate, user-friendly working interface.
• Offline and online interchangeable at any time.
• Applicable to Windows-compatible software such as CorelDRAW, CAD, Photoshop, Word, Excel, etc., print output directly without conversion.
• The software is compatible with AI, BMP, PLT, DXF, DST graphic formats.
• Capable of multi-level layered processing and defined output sequences.
• Various path optimization functions, pause function during machining.
• Various ways of saving graphics and machining parameters and their reuse.
• Processing time estimation and cost budgeting functions.
• The starting point, working path and laser head stopping position can be set according to the different needs of the process.
• Real-time speed adjustment during processing.
• Power failure protection function. If the power is suddenly cut off during machining, the system can remember the break point and quickly find it when the power is restored and continue machining.
• Individual settings for process and accuracy, laser head trajectory simulation for easy visualisation of the cutting sequence.
• Remote assistance function for troubleshooting and training remotely using the internet.
Technical Specifications
Explore detailed specifications to better understand performance, speed, and compatibility.
| Model No. | JMS2TJG5050DT-M | |
|---|---|---|
| Laser type | CO2 glass laser / RF metal laser | |
| Laser power | 30W ~ 300W | |
| Working table | Aluminum alloy negative pressure working table | |
| Working area | 500x500mm / 600x600mm /1000x800mm / 1300x900mm / 1400x800mm | |
| Machine body structure | Welded base frame (ageing treatment + finishing), closed machining area | |
| X-Y axis transmission | Precision screw + linear guide | |
| X-Y axis drive | Servo motor | |
| Platform flatness | ≤80um | |
| Processing speed | 0-500mm/s | |
| Acceleration | 0-3500mm/s² | |
| Repositioning Accuracy | ±0.01mm | |
| Cutting accuracy | ±0.05mm | |
| Optical structure | Flying optical path structure | |
| Control system | Golden Laser multi-axis closed-loop control system | |
| Camera | 1.3 megapixel industrial camera | |
| Recognition mode | Mark registration | |
| Graphic formats supported | AI, BMP, PLT, DXF, DST, etc. | |
| Power supply | Single-phase 220V, 35A, 50Hz | |
| Options | Honeycomb / knife strip work table, roll-to-roll structure cutting system | |
Videos
Watch our machines in action and see how laser die-cutting transforms production workflows
Applications
Designed to meet the cutting and finishing needs of multiple industries
This precision laser cuttiing machine is designed for precision cutting of thin, high-value materials in advanced manufacturing fields, such as display manufacturing, touch panels, flexible electronics, and film & foil processing.
Display Panels (LCD, OLED, Mini/Micro LED)
Precision cutting of optical films, polarizers, and backlight diffusers with high consistency.
Touch Screens & Sensor Components
Micron-level cutting for conductive films, sensor layers, and transparent electrode materials.
Flexible Printed Circuits (FPC)
Accurate, burr-free cutting for flexible circuit substrates and thin insulating films.
E-Paper & Electronic Panels
Clean cutting for e-paper, display substrates, and multilayer laminates without burning or residue.
Optical & Functional Films
Ideal for PET, PI, PC, PVC, and other polymer films requiring high-precision contour processing.
Thin Film Panels and Foil-Based Composites
Suitable for coated films, adhesive layers, protective films, and non-metallic foil-laminated materials used in electronic and display applications.
Sample Gallery
Browse real samples produced by our systems to see the quality and versatility of laser cutting
Interested in this laser solution?
If you need any further information or a detailed estimate, do not hesitate to contact one of our experts who will offer you the solution that best suits your needs and will guide you through the purchase process.
Get in Touch with Golden Laser
Related Products
Roll-to-Part Laser Cutting Machine
LC350F / LC520F

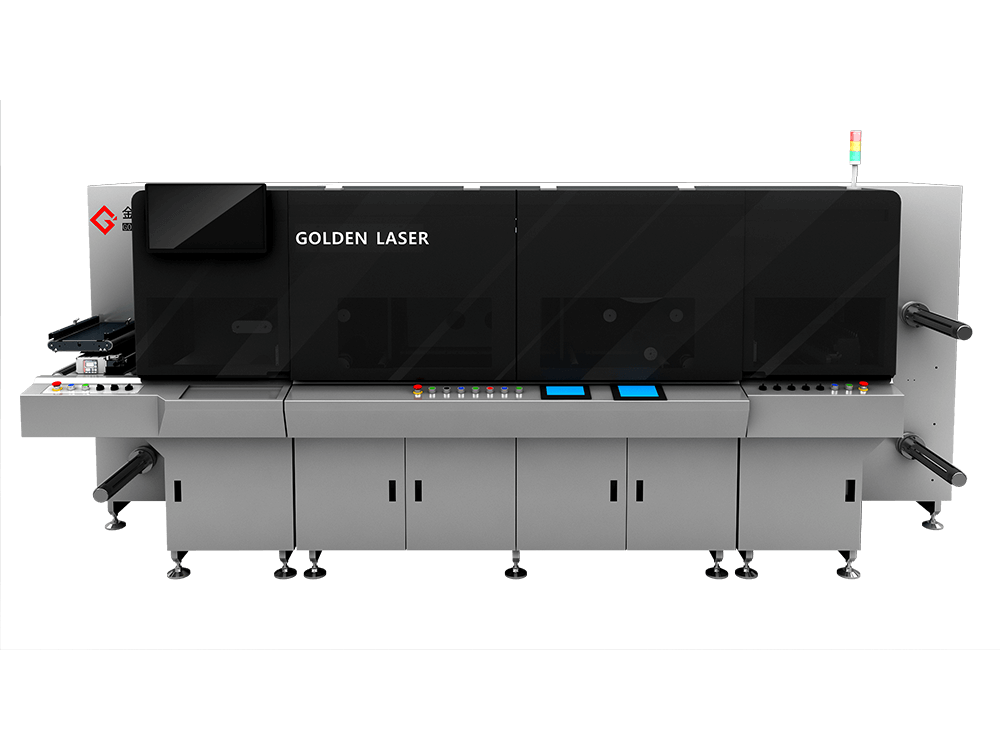

Roll-to-Roll Laser Cutter for Premium Labels
LC350B / LC520B

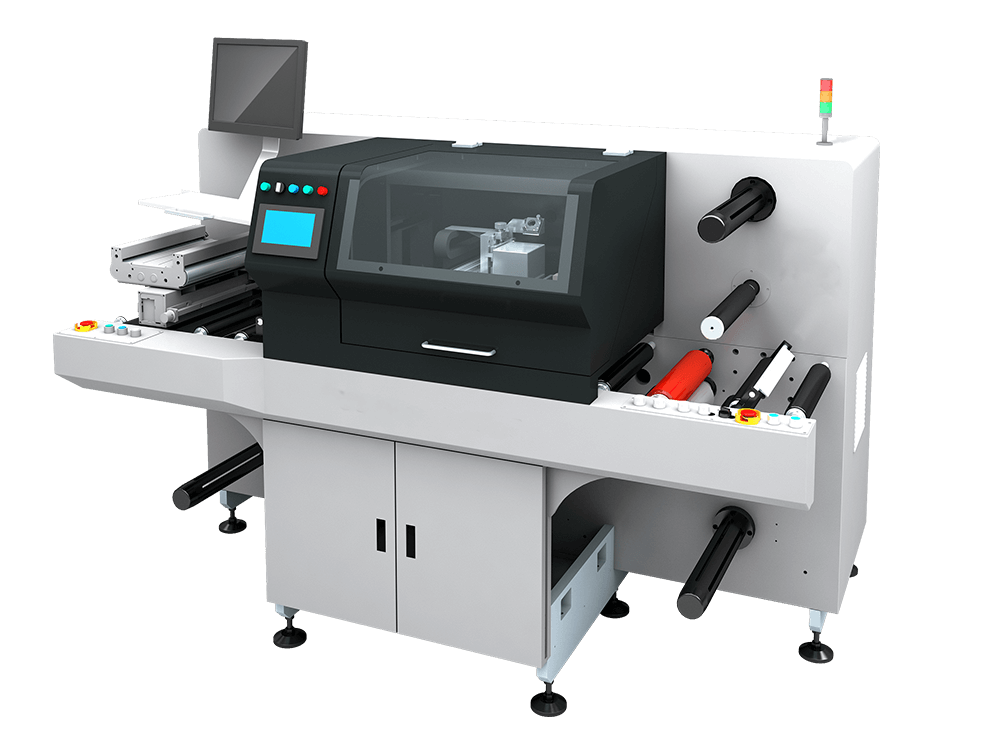

Roll Fed Laser Cutter
