Roll to Roll Laser Die Cutter

LC230

The LC230 is a compact, affordable laser label cutting and finishing machine. It is designed for users who can fully utilize self-adhesive rolls and precisely print the required number of label designs.

The LC230 automatically cuts labels to the desired shape and size. Labels can be laminated before cutting to provide superior chemical resistance and abrasion resistance, as needed. Once cut, waste is automatically removed and the roll is rewound for immediate use.

Cutting Width: 230mm
Cutting Accuracy: ±0.1mm
Max. Web Speed: 60m/min
Laser Type: CO2 Laser (Pico laser, UV laser, and fiber laser available upon request)
CO2 Laser Power: 100 Watt / 150 Watt / 300 Watt

Features

Discover the key advantages of our laser die-cutting systems, designed for precision, automation, and efficiency.

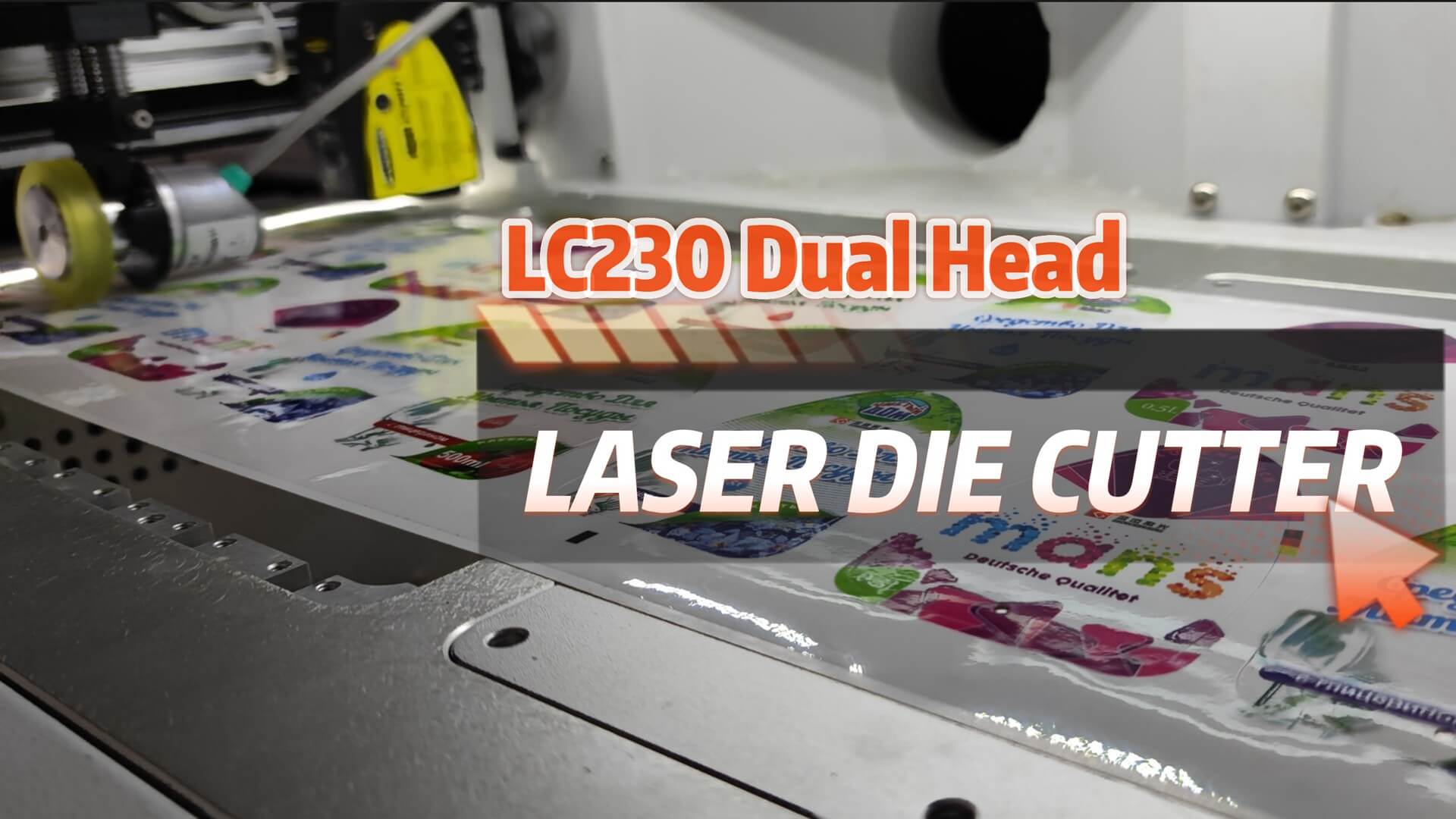

LC230 is a compact, economic and fully digital laser die cutter, available with Single or Dual Laser Heads. LC230 comes standard with unwinding, laser cutting, rewinding and waste matrix removal units. And it is prepared for add-on modules such as UV varnishing, lamination and slitting, etc.

Sealed CO₂ RF metal laser sources offers a long life and low maintenance.
Double rewind: Allows the processed material to be collected on two separate rolls.
Barcode reader: automatic pattern changeover on the fly.
Stackers or pick-and-place robots can be added for a fully automated solution.

LC230 offers completed digital and automatic solution for roll to roll (or roll to sheet) laser cutting. No extra tooling expense and waiting time needed, ultimate flexibility to fulfill dynamic market demands.

Quick Turnover

Eliminates traditional tooling & die fabrication, maintenance and storage. Ideal solution for just-in-time manufacturing and short-runs.

Precision Cutting

Produce complex geometry and superior part quality that cannot be replicated in the traditional die cutting process.

PC Workstation

Through the PC Workstation you can manage all the parameters of the laser station, optimize layout for maximum yields.

Vision System - Cut to Print

Vision camera systems or sensors are available for registering printed materials or pre-die cut shapes, allowing precision cutting with cut-print registration of 0.1mm.

Multiple Processes

Suitable for different kinds of work: Full cutting, kiss-cutting, perforating, micro perforating, engraving, marking, creasing - in a single processing run.

Digital Workflow

A complete digital workflow solution: Pattern changeover is as simple as opening a file; no downtime or setup is required.

Self-developed Software

Self-developed software intelligent algorithms improve cutting accuracy by constantly adjusting the laser processing speed to match different graphics.

Unlimited Cutting Path

The cutting beam can be moved in any direction and cuts smoothly. Easily create rounded, squared corners or jagged edges for shaped labels.

Technical Specifications

Explore detailed specifications to better understand performance, speed, and compatibility.

Model No.	LC230
Max. cutting width	230mm (9")
Max. width of feeding	240mm (9.4”)
Max. web diameter	400mm (15.7")
Laser type	CO2 RF metal laser tube
Laser power	100W / 150W / 300W
Number of laser heads	Single-head or dual-head
Laser beam positioning	Galvanometer
Max. web speed	60mm/min
Cutting accuracy	±0.1mm
Power supply	220-380V 3 Phase 50/60 Hz

Videos

Watch our machines in action and see how laser die-cutting transforms production workflows

Applications

From labels to packaging, textiles, and beyond - discover the industries that benefit from our solutions.

Golden Laser’s laser converting solutions empower our customers to expand capabilities and unlock new business opportunities across a wide range of industries, including:

Labels
Stickers
Decals
Packaging
Apparel Decorations
Medical Applications
Abrasive Materials
Industrial Films and Tapes
Automotive Components
Gaskets & Seals

Sample Gallery

Browse real samples produced by our systems to see the quality and versatility of laser cutting

Add-on Converting Options

Golden Laser provides a range of customizable options to tailor roll-to-roll laser cutting machine to your specific production needs.

These most popular add-on features can be integrated into a single, automated workflow and can further enhance performance, flexibility, and efficiency.

Barcode Reading

Enables automatic job changeover, variable cutting on the fly, and integration with databases for complete production traceability.

Lamination

A lamination module applies a protective or decorative film to the material before or after laser cutting. This adds durability and can create a gloss or matte finish.

UV Coating System

Enhance label appearance and durability with flood coating (full coverage) or spot coating (specific areas). Ideal for adding premium finishes to packaging and labels.

Cold Foil

Cold foil module enables metallic effects and decorative finishes directly on printed materials, enhancing visual impact without heat or embossing.

Knife Slitting

A cost-effective slitting option using stationary knife blades, suitable for dividing wide rolls into narrower rolls for multiple jobs.

Rotary Knife Slitting

A higher-precision slitting solution with rotary blades, either manually adjusted or servo-controlled, for flexible and efficient roll separation.

Rotary Die-Cutting Station

A versatile option for long-run jobs. Supports both full rotary and semi-rotary modes, offering fast changeovers and flexibility in step-and-repeat layouts.

Rotary Sheeting Option

Converts rolls of printed or laser-cut labels into sheets with adjustable lengths. Sheets can be stacked automatically for further processing.

Interested in this laser solution?

If you need any further information or a detailed estimate, do not hesitate to contact one of our experts who will offer you the solution that best suits your needs and will guide you through the purchase process.
