Roll-to-Part Laser Die Cutting Machine

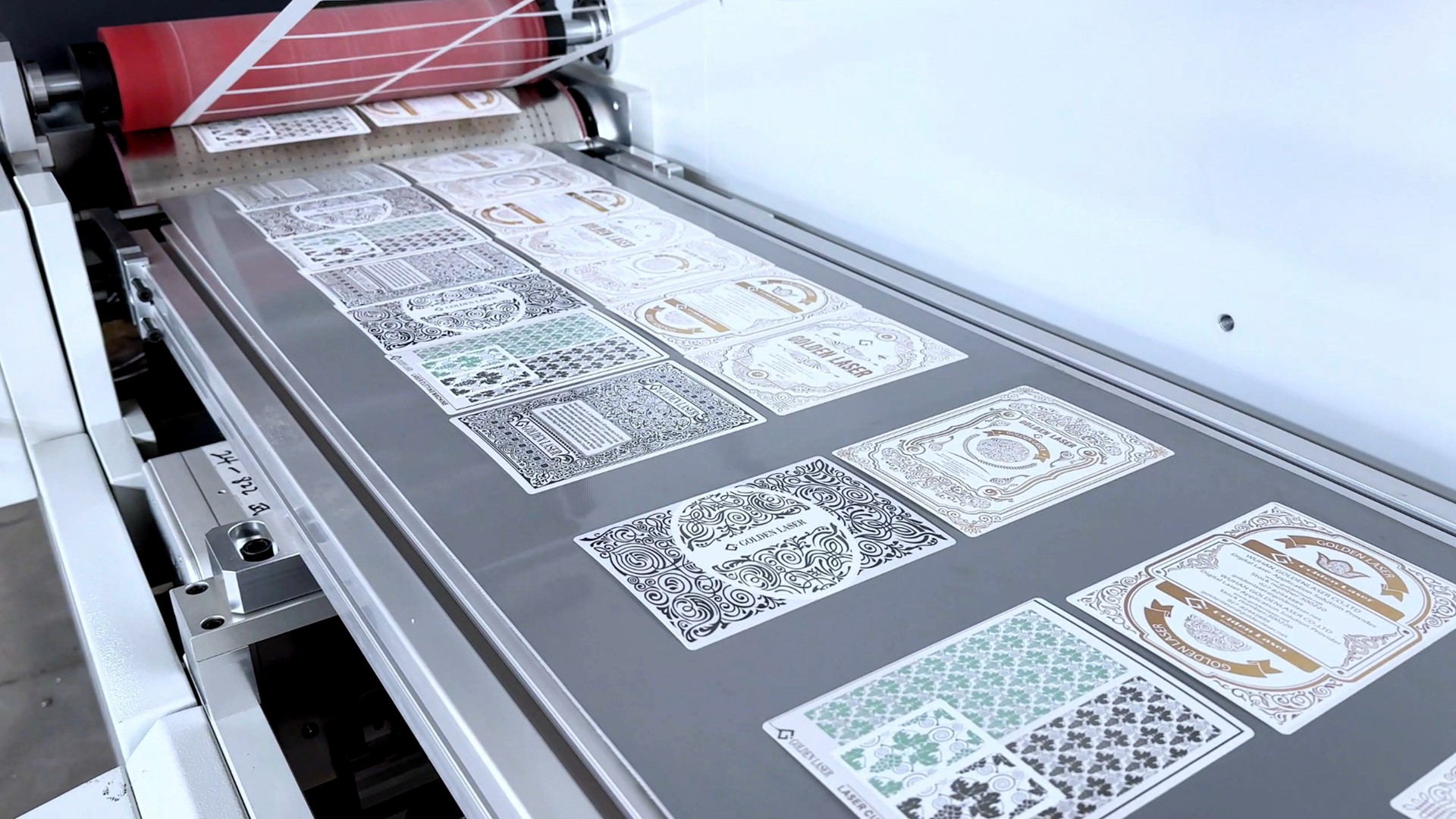

This laser die cutting machine is able to run roll-to-roll labels as well as operate as a roll-to-part finishing solution. It is best suited for label converters that need to extract finished and through cut parts and labels; most often label converters handling sticker and decal orders. This machine comes with an extraction unit that separates your finished label products onto a conveyor. Add-on converting options are available to further enhance your label applications.
- Cutting Width: 350mm / 520mm (Customizable upon request)
- Cutting Precision: ±0.1mm
- Max. Web Speed: 80m/min
- Laser Type: CO2 Laser
- Laser Power: 150W / 200W / 300W / 600W
Features
Discover the key advantages of our laser die-cutting systems, designed for precision, automation, and efficiency.
This laser die-cutting system is designed to handle both roll-to-roll label production and roll-to-part converting applications with exceptional precision and flexibility.
The standard configuration includes an unwinder, web guiding system, laser cutting module, waste removal unit, and rewinder. For added versatility, the rewinder can be switched to an extraction module that automatically separates finished stickers or parts onto a conveyor for easy collection.
It is an ideal solution for label converters who need to process full-cut or kiss-cut labels and components, particularly those producing stickers, decals, custom-shaped labels, and specialty film products.
A variety of optional finishing modules can be seamlessly integrated to expand functionality and elevate the efficiency and quality of your label production workflow.
Cutting Mode Conversion
Quickly switch between roll-to-roll and roll-to-part cutting modes to shorten production setup time. Seamlessly adapt to different job requirements for efficient operation.
Laser Cutting Technology
Ideal solution for just-in-time manufacturing, short-medium production runs & complex geometry. Eliminates traditional hard tooling & die fabrication, maintenance and storage.
Rapid Processing Speeds
Full cut, kiss-cut, engrave-mark, perforate and score cut the web in continuous, start-stop or tracking version (cuts longer than cutting area) with web speeds up to 100 meters per minute.
Dynamic Speed Adjustment
Automatically adjusts the laser head movement speed according to the complexity of the cutting path. Straight lines are processed at high speed, while corners are decelerated to ensure cutting precision.
Precision Cutting
Produce very simple or complex geometry not achieveable with rotary die cutting tools. Superior part quality that cannot be replicated in the traditional die cutting process.
PC Workstation & Software
Through the PC Workstation you can manage all the parameters of the laser station, optimize layout for maximum web speed & yields, convert graphics files to be cut & reload jobs and all parameters in seconds.
Vision System - Cut to Print
Allows precision cutting of improperly positioned materials with cut-print registration of 0.1mm. Vision (registration) systems are availabile for registering printed materials or pre-die cut shapes.
High Productivity
Supports unwinding and rewinding with tension control for continuous high-speed production. Eliminates the need for traditional dies - patterns can be switched instantly via software, ideal for short runs and multi-variety orders.
Technical Specifications
Explore detailed specifications to better understand performance, speed, and compatibility.
| Model No. | LC350F | LC520F |
|---|---|---|
| Max. cutting width | 350mm (13.7") | 520mm (20.4") |
| Laser type | CO2 RF metal laser tube | |
| Laser power | 150W / 200W / 300W / 600W | |
| Number of laser heads | Single-head, dual-head, or multiple heads | |
| Laser beam positioning | Galvanometer | |
| Max. web speed | 120mm/min (depending on laser power, material and cut pattern) | |
| Cutting accuracy | ±0.1mm | |
| Power supply | 220-380V 3 Phase 50/60 Hz | |
| Dimensions (W × D × H) | 5.6m × 1.52m × 1.78m | 7.6m × 2.1m × 1.88m |
Videos
Watch our machines in action and see how laser die-cutting transforms production workflows
Applications
From labels to packaging, textiles, and beyond - discover the industries that benefit from our solutions.
Golden Laser’s laser converting solutions empower our customers to expand capabilities and unlock new business opportunities across a wide range of industries, including:
- Labels
- Stickers
- Decals
- Packaging
- Apparel Decorations
- Medical Applications
- Abrasive Materials
- Industrial Films and Tapes
- Automotive Components
- Gaskets & Seals
Sample Gallery
Browse real samples produced by our systems to see the quality and versatility of laser cutting
Add-on Converting Options
Golden Laser provides a range of customizable options to tailor roll-to-roll laser cutting machine to your specific production needs.
These most popular add-on features can be integrated into a single, automated workflow and can further enhance performance, flexibility, and efficiency.
Barcode Reading
Enables automatic job changeover, variable cutting on the fly, and integration with databases for complete production traceability.
Lamination
A lamination module applies a protective or decorative film to the material before or after laser cutting. This adds durability and can create a gloss or matte finish.
UV Coating System
Enhance label appearance and durability with flood coating (full coverage) or spot coating (specific areas). Ideal for adding premium finishes to packaging and labels.
Cold Foil
Cold foil module enables metallic effects and decorative finishes directly on printed materials, enhancing visual impact without heat or embossing.
Knife Slitting
A cost-effective slitting option using stationary knife blades, suitable for dividing wide rolls into narrower rolls for multiple jobs.
Rotary Knife Slitting
A higher-precision slitting solution with rotary blades, either manually adjusted or servo-controlled, for flexible and efficient roll separation.
Rotary Die-Cutting Station
A versatile option for long-run jobs. Supports both full rotary and semi-rotary modes, offering fast changeovers and flexibility in step-and-repeat layouts.
Rotary Sheeting Option
Converts rolls of printed or laser-cut labels into sheets with adjustable lengths. Sheets can be stacked automatically for further processing.
