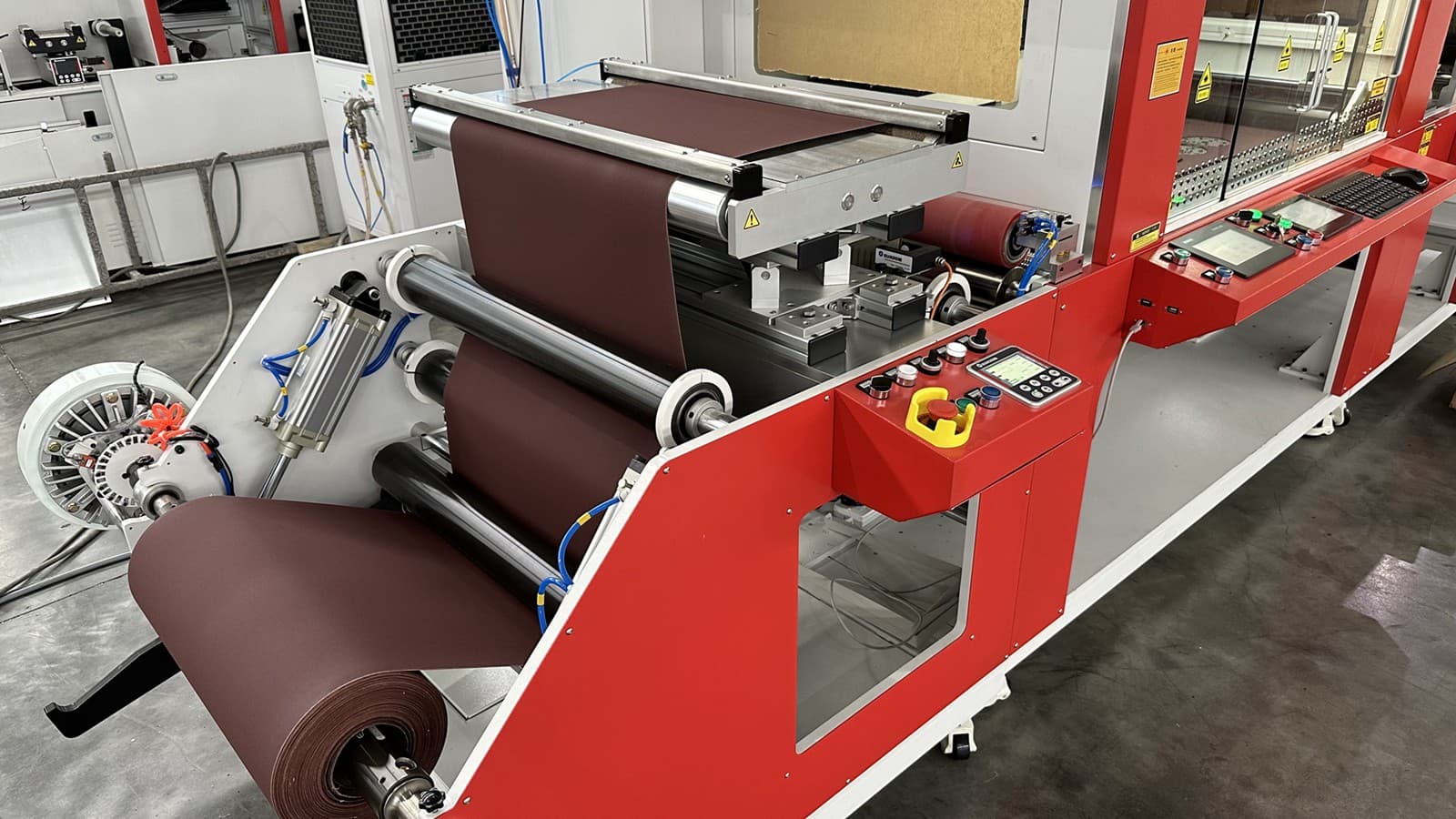

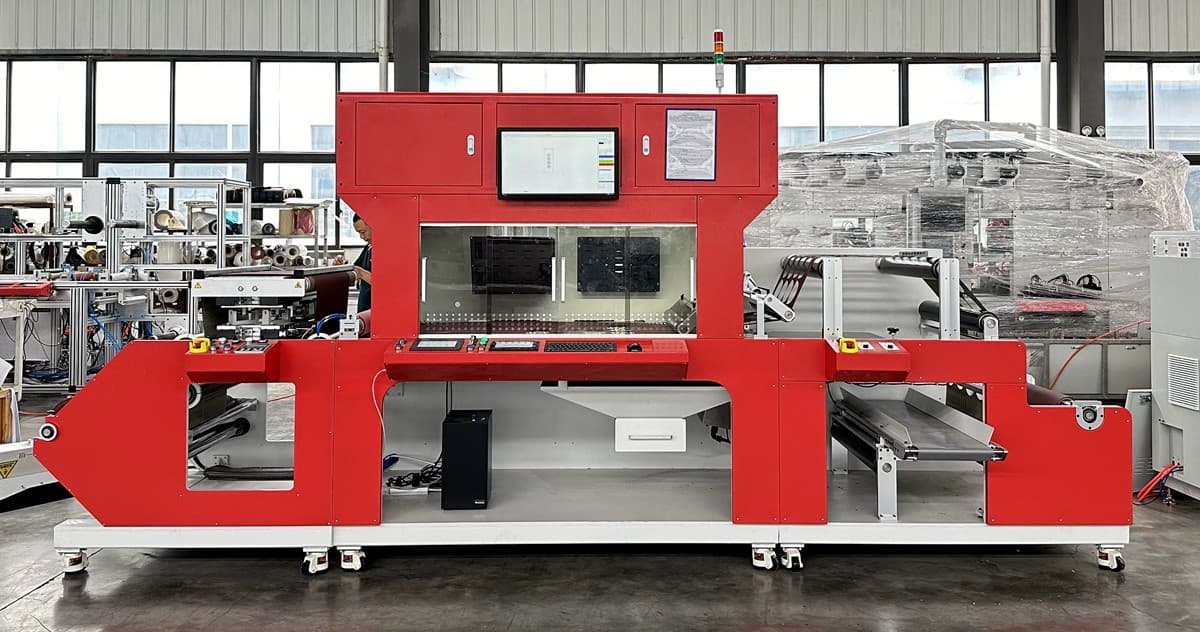

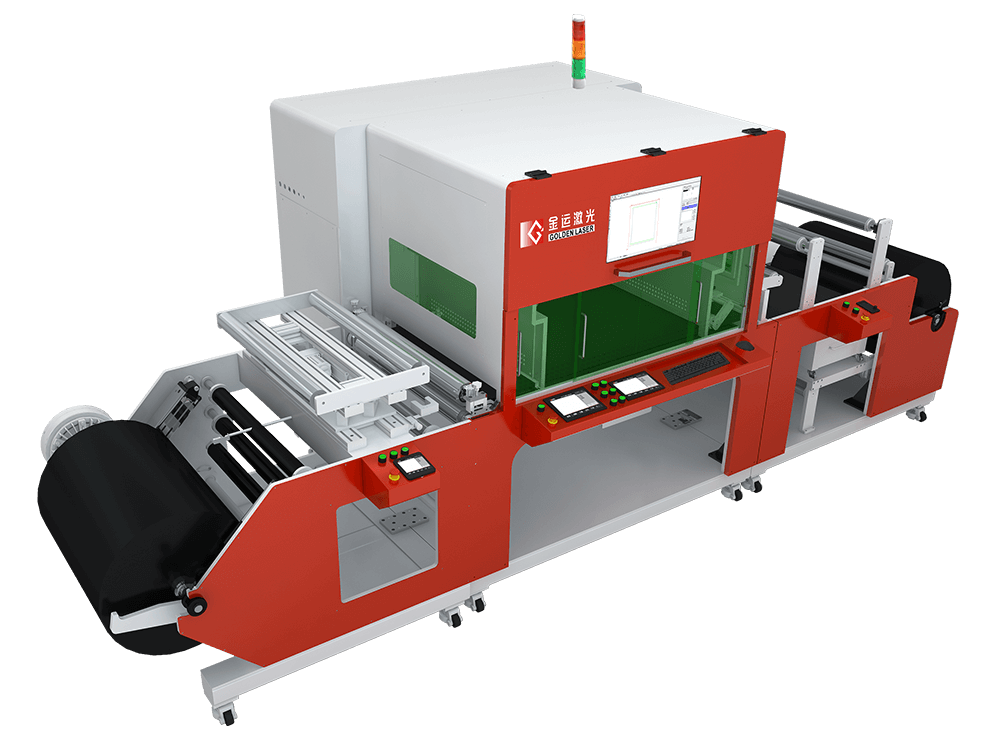

Roll to Roll Laser Cutting Machine for Abrasives

LC800

The LC800 Roll-to-Roll Laser Cutter is a highly efficient and customizable solution, specifically designed for cutting abrasive materials up to 800 mm in width. This machine stands out for its versatility, enabling precise cutting of various shapes such as multi-hole discs, sheets, triangles, and more. Its modular design makes it ideal for automating and streamlining abrasive material conversion processes, significantly boosting productivity.

Features

The LC800 is a powerful and configurable laser cutting machine designed for abrasive materials with a width of up to 800 mm. It is a versatile laser system capable of cutting all possible hole patterns and shapes, including discs with multi-holes, sheets, and triangles. With its configurable modules, the LC800 provides the solution to automate and enhance the efficiency of any abrasives converting tool.

The LC800 can cut a large variety of materials, such as paper, velcro, fiber, film, PSA backing, foam, and cloth.

The working area of the Roll-to-Roll Laser Cutter Series can vary with a maximum material width. For wider materials from 600mm up to 1,500 mm, Golden Laser offers the series with two or three lasers.

There is a wide range of laser power sources available, varying from 150 watts to 1,000 watts. The more laser power, the higher the output. The coarser the grid, the more laser power is needed for a high cut quality.

The LC800 benefits from the powerful software control. All designs and laser parameters are stored in automated databases, making the LC800 very easy to operate. One day of training is sufficient to operate this laser machine. LC800 enables you to process a wide range of materials and cut an unlimited selection of shapes and patterns while cutting the material ‘on the fly.’

Continuous cutting ‘on the fly’ guarantees a high output
Easy to operate with pre-defined parameters
High quality edges, kiss-cut or perforation in every possible shape
New product opportunities, e.g. multi-hole patterns
No time and costly material loss at changeover
Minimum maintenance and low labor demand

Technical Specifications

Model No.	LC800
Max. cutting width	800mm (31.5")
Laser type	CO2 RF metal laser tube
Laser power	150W, 300W, 600W
Number of laser heads	Single-head, dual-head, or multiple heads
Laser beam positioning	Galvanometer laser
Cutting speed	Depending on laser power, material and cut pattern
Cutting accuracy	±0.1mm
Power supply	220-380V 3 Phase 50/60 Hz

Videos

Watch our machines in action and see how laser die-cutting transforms production workflows

Applications

From labels to packaging, textiles, and beyond - discover the industries that benefit from our solutions.

Golden Laser’s laser converting solutions empower our customers to expand capabilities and unlock new business opportunities across a wide range of industries, including:

Labels
Stickers
Decals
Packaging
Apparel Decorations
Medical Applications
Abrasive Materials
Industrial Films and Tapes
Automotive Components
Gaskets & Seals

Sample Gallery

Browse real samples produced by our systems to see the quality and versatility of laser cutting

Interested in this laser solution?

If you need any further information or a detailed estimate, do not hesitate to contact one of our experts who will offer you the solution that best suits your needs and will guide you through the purchase process.
