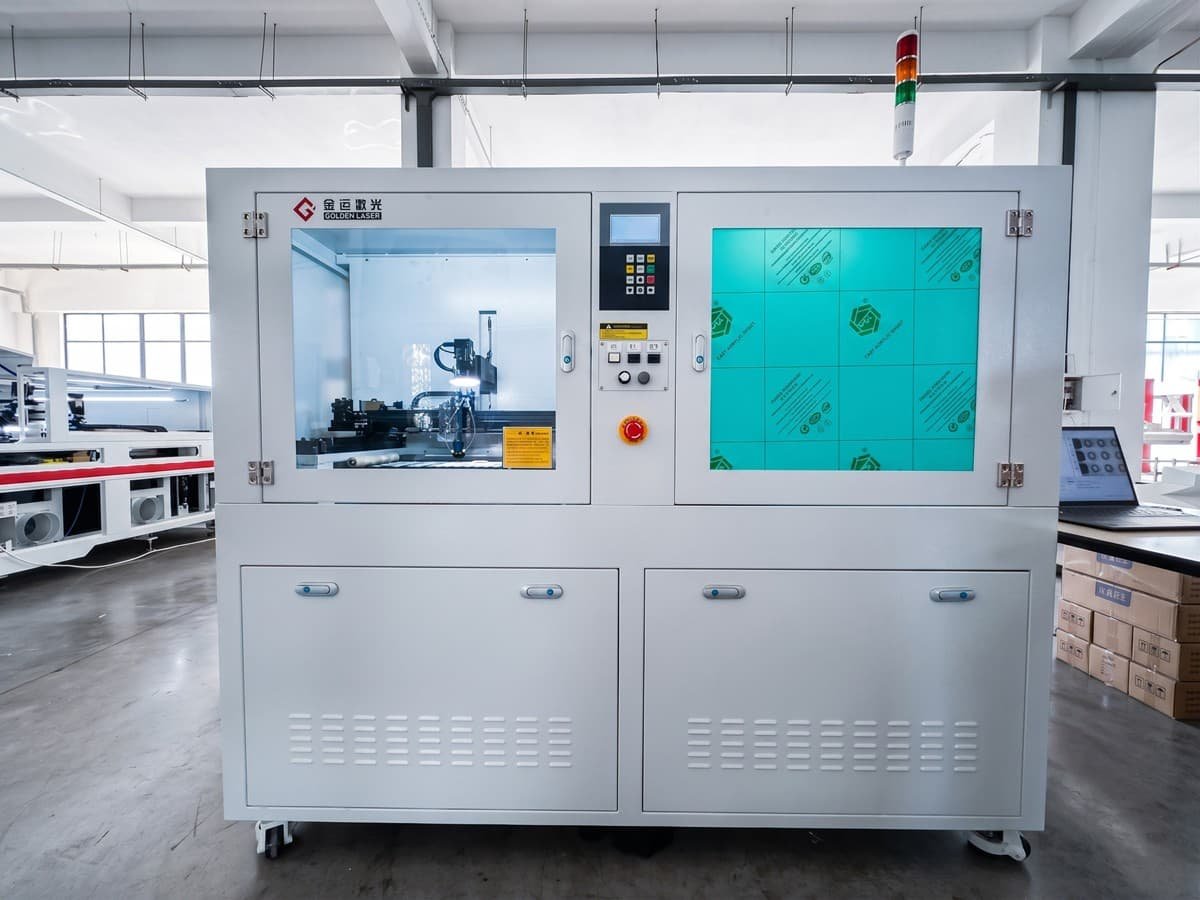

Automatic Laser Cutter with Roll Feeder and CCD Camera
A fully automatic laser solution specifically designed for roll-fed labels cutting and roll materials slitting.
Featuring a fully enclosed structure in compliance with CE standards, the system ensures safe and reliable operation. By integrating a conveyor working platform with an automatic unwinding and rewinding system, it enables a seamless, fully automated workflow – from feeding and vision recognition to cutting and collection – making it an ideal solution for apparel trims and label converting manufacturers.
- Laser Type: CO2 DC Glass Laser
- Laser Power: 80W, 110W, 130W, 150W
- Working Area: 300mm × 200 mm
- Working Table: Conveyor Working Table
Roll-Fed Laser Cutting Solution
The ZDJG-3020LD is a fully automatic laser cutting system designed for roll-fed labels and flexible materials.
- Suitable for slitting and cutting webbings and labels in rolls of the width within 200mm
- Full cutting (cutting through) from the rolls to pieces
- CCD camera to automatic recognize the label shapes
- Conveyor working table and roll feeder – Automatic and continuous processing
Features
Discover the key advantages of our laser systems, designed for precision, automation, and efficiency
Fully Automated Roll Processing
Equipped with a conveyor working table, the system enables continuous feeding and cutting of roll materials, significantly improving production efficiency.
CCD Vision Camera System
CCD camera automatically recognizes and tracks label contours, ensuring accurate cutting even for complex shapes, as well as reducing material waste.
Stable and Enclosed Machine Design
Fully enclosed structure meets CE standards, providing safe, clean, and environmentally friendly operation.
Compensation for Material Deformation
Effectively handles label shifting or stretching caused by tension during feeding, ensuring precise cutting results.
Flexible Processing Modes
Supports both continuous contour cutting and registration-based cutting, making it highly adaptable to different production requirements.
Integrated Roll-to-Roll Workflow
Combines feeding, cutting, and collection into one system, enabling true unattended operation and reducing labor costs.
Videos
Watch our machines in action and see how laser cutting transforms production workflows
Technical Specifications
Explore detailed specifications to better understand performance, speed, and compatibility.
| Model No. | ZDJG-3020LD | ||
|---|---|---|---|
| Laser Type | CO2 DC Glass Laser Tube | ||
| Laser Power | 80W, 110W, 130W, 150W | ||
| Working Table | Conveyor Working Table | ||
| Working Area | 300mm × 200mm | ||
| Positioning Accuracy | ±0.1mm | ||
| Cooling System | Constant Temperature Water Chiller | ||
| Power Supply | AC220V±5% 50/60Hz | ||
| Graphic Format Supported | AI, PLT, DXF, BMP, DST | ||
| Dimensions | 1760mm × 740mm × 1390mm | ||
| Net Weight | 205KG | ||
Application Sectors
Versatile Applications Across Multiple Industries and Flexible Material Processing
Industries Served
- Apparel & fashion embellishments
- Clothing labels & patches
- Textile accessories & trims
- Outdoor & sports equipment
- Protective equipment & technical textiles
Ideal for precision contour cutting of garment labels and branding elements with clean, sealed edges.
- Woven labels
- Printed labels
- Embroidered patches, emblems & badges
- Dye sublimation labels
- Care labels & branding tags
Designed for continuous processing of narrow-width materials, ensuring consistent quality and fray-free edges.
- Polyester & nylon webbing
- Elastic bands
- Decorative ribbons
- Hook & loop fasteners (Velcro)
- Reinforcement tapes
Suitable for demanding materials used in protective gear and performance equipment, where precision and edge quality are critical.
- Webbing for tactical and outdoor gear
- Hook & loop components for protective apparel
- Reinforcement materials for heavy-duty garments
- Components used in ballistic vests and load-bearing systems
Handles a wide range of roll-fed non-metal materials with accuracy and efficiency.
- Textile fabrics
- Non-woven materials
- Synthetic films
- Lightweight industrial fabrics
Sample Gallery
Browse real samples produced by our systems to see the quality and versatility of laser cutting
Interested in this laser solution?
If you need any further information or a detailed estimate, do not hesitate to contact one of our experts who will offer you the solution that best suits your needs and will guide you through the purchase process.
