Vision Scan Laser Cutter for Sublimation Fabric
Vision Laser is is ideal for cutting sublimated fabric of all shapes and sizes. Cameras scan the fabric, detect and recognize printed contour, or pick up on registration marks and cut the chosen designs with speed and accuracy. A conveyor and auto-feeder is used to keep cutting continuous, saving time and increasing production speed.
- Working area: 1600mm×1200mm (63"×47.2")
- Camera scanning area: 1600mm×800mm (63"×31.4")
- Collection area: 1600mm×600mm (63"×23.6")
- Laser power: 150 Watt, 300 Watt
- Cutting speed: 0-800 mm/s
Features
The latest innovation for laser cutting of dye sublimation printed fabrics and textiles
- While the roll of sublimated fabric is being fed onto the conveyor table, the vision system performs a fast scan on the fly of the printed contour and automatically creates a vector file. It optimizes the use of printed fabrics as the vision scanning technology scans the entire bed within 5 seconds before starting the cutting process.
- Alternatively, the registration marks can be accurately read by the camera, allowing intelligent algorithm to compensate for any distortions or stretches that may occur in unstable rolls of textile.
- Independent dual laser heads cut their respective allocated areas simultaneously, high processing efficiency.
- In addition to the 2 overhead industrial cameras, a CCD camera and a registration camera can be mounted next to each of the two laser heads for precise recognition and cutting of small graphics such as embroidered labels, woven labels, dye-sub letters/numbers/logos, etc.
- A conveyor bed and auto-feeder are used to keep cutting continuous, saving time and increasing production speed.
- Extension table is conducive to pick up the cut pieces.
Benefits
The latest innovation for laser cutting of dye sublimation printed fabrics and textiles
- Continuous “on the fly” scanning
- High output: 500 sets of jersey per day per shift (only for reference)
- No original file required
- Vacuum conveyor
- 30%~50% Faster than competition
Videos
Watch our machines in action and see how laser cutting transforms production workflows
Playlist
1:40
1:27
0:46
Workflow
Fully automatic machining process for the vision scan laser cutting machine
WORK MODE 1: Scan On The Fly
Printing requirement – The printed outline and materials background have big color difference, distance not less than 5mm between the contours. Only the outer contour can be cut, the inside nested graphics cannot be cut.
Synchronized Material Feeding
"On-the-Fly" Vision Scanning
High-Speed Laser Cutting
Continuous Collection & Cycling
WORK MODE 2: Read Registration Marks
Application
- For soft materials easy to distort, curl, extended
- For complicated pattern, nesting pattern inside the outline and high precision cutting requirement
Requirement
Need 1:1 original printed graphics file. Graphics format: *.jpg, *.bmp, or *.png
Technical Specifications
Explore detailed specifications to better understand performance, speed, and compatibility.
| Model No. | CJGV-160130LD | |
|---|---|---|
| Laser type | CO2 glass laser / CO2 RF metal laser | |
| Laser power | 150W, 300W | |
| Working area | 1600mm×1200mm (63"×47.2") | |
| Camera scanning area | 1600mm×800mm (63"×31.4") | |
| Collection area | 1600mm×500mm (63"×19.6") | |
| Working table | Vacuum conveyor working table | |
| Cutting speed | 0~800mm/s | |
| Software | Goldenlaser CAD Scanning Software Package | |
| Power supply | AC220V±5% 50/60Hz | |
| Graphic format supported | AI, PLT, DXF, BMP, DST | |
| Options | Auto feeder, red dot, CCD camera for registration | |
Let's Connect
Get vision laser cutting solutions for dye-sublimation printed fabrics and textiles from a roll of nested printed shapes
Let Golden Laser Help You Grow Your Sublimation Business.
Application Sector

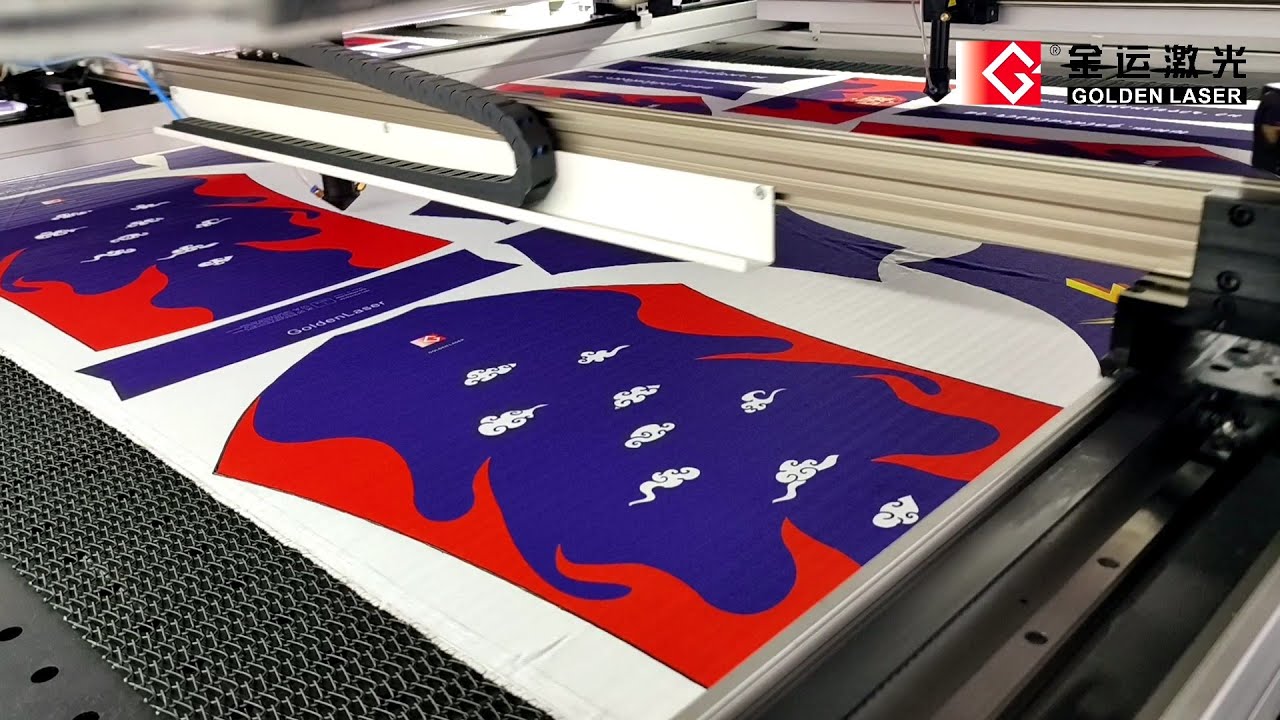

Sportswear
- Jerseys (basketball jerseys, football jerseys, baseball jerseys, ice hockey jerseys)
- Cycling jerseys
- Team uniforms

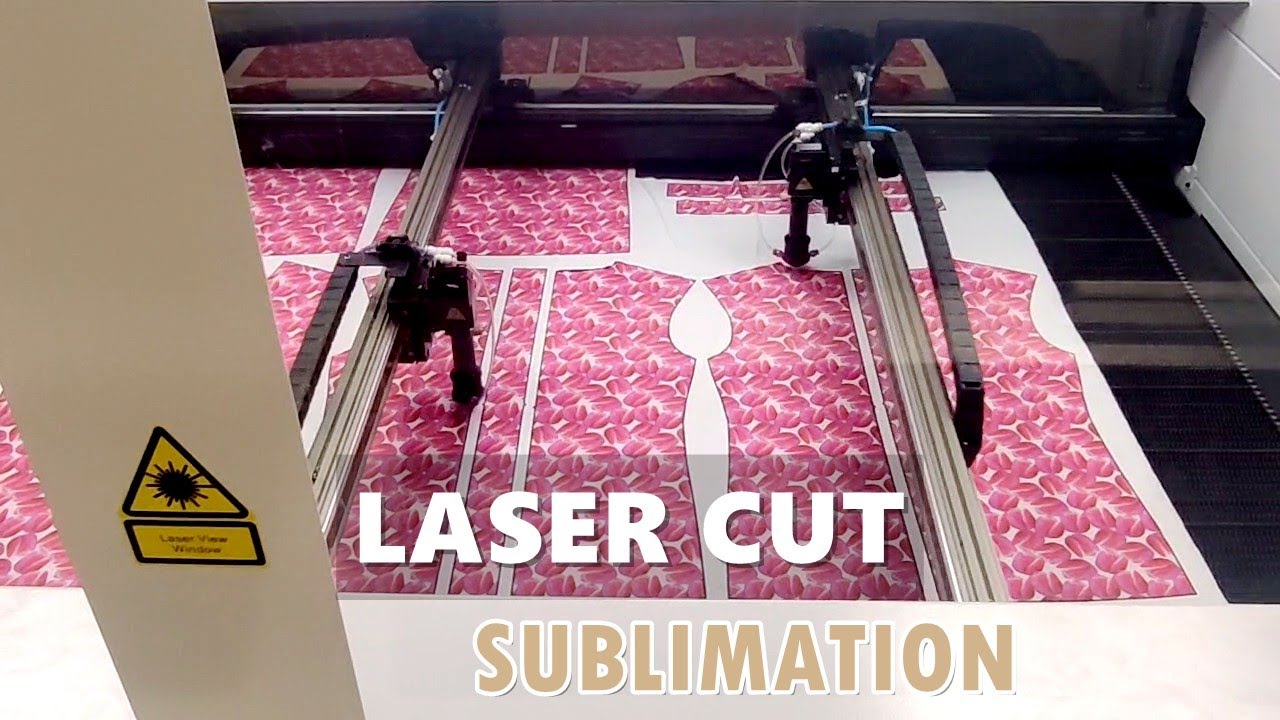

Textile & Apparel
- Activewear, Yoga wear and leggings
- Swimwear and beachwear
- Dancing wear, leotard
- Clothing for gymnastics
- T-shirts, Printed garment components
Footwear Industry
- Flyknit shoe uppers
- Printed fabric shoe components
- Insole materials
- Textile footwear parts
Labels & Patches
- Embroidered patches
- Woven labels
- Garment badges
- Heat transfer logos
- Printed textile labels

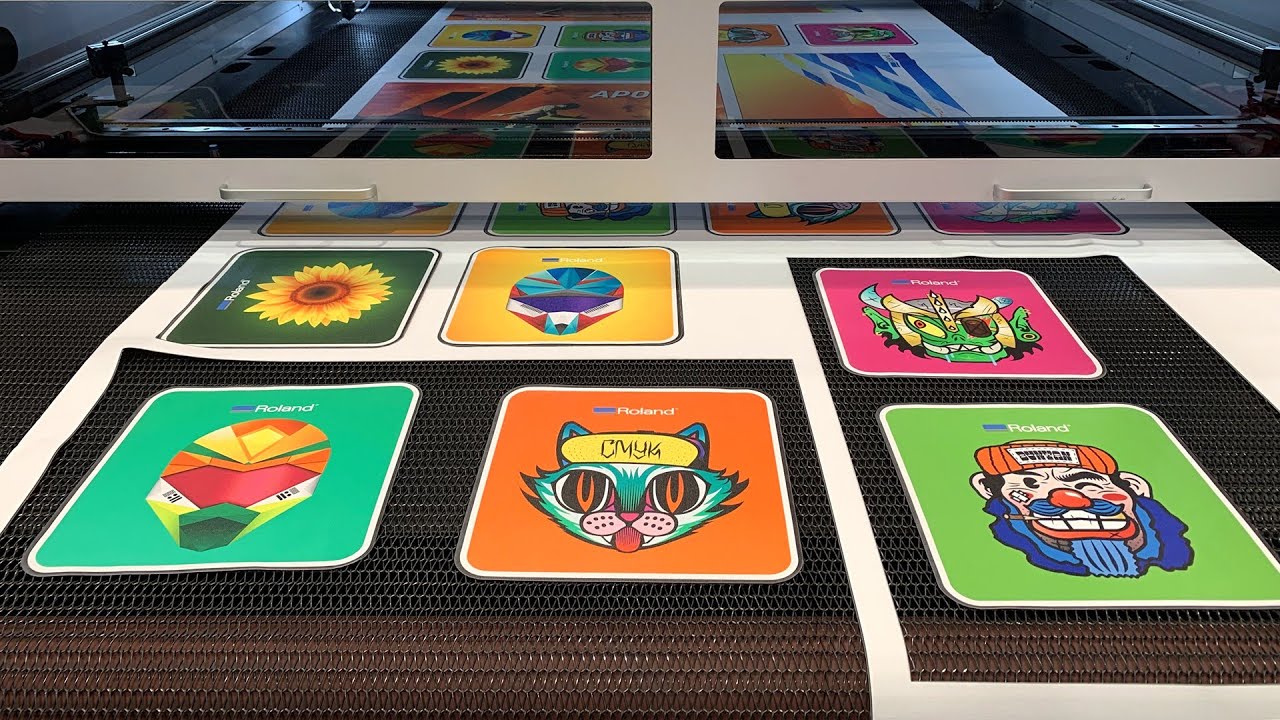

Advertising & Printed Graphics
- Printed polyester fabrics
- Advertising banners, flags
- Display graphics
- Printed PET film
- Soft signage fabrics
Custom Printed Products
- Cartoon patches
- Decorative fabric elements
- DIY printed crafts
- Fashion & printed textile accessories
