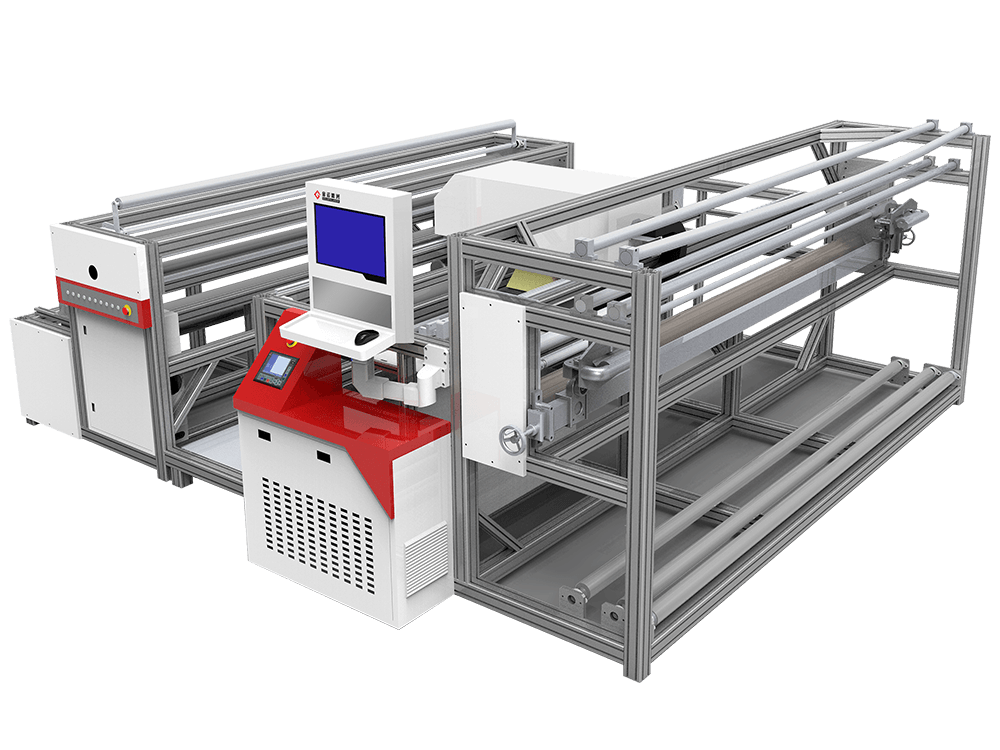

Laser Cutting Machine for Warp Knitted Lace Trimming
The Golden Laser Warp-Knitted Lace Laser Cutting Machine is an intelligent, fully automated solution for trimming the edges of decorative fabrics such as curtains, voile, tablecloths, and sofa pads. Its standout feature is the integration of a warp-knitted lace feature recognition algorithm with laser galvanometer processing, allowing the system to automatically detect patterns and perform precise, adaptive trimming. Designed for roll-to-roll operation, it can trim both edges simultaneously, ensuring consistent, high-quality results while maintaining the delicate structure of lace. This solution combines pattern-adaptive precision, continuous automation, and clean operation, making it ideal for high-volume textile production.
Key Features
Discover the key advantages of our laser systems, designed for precision, automation, and efficiency
Intelligent Lace Feature Recognition
Advanced recognition algorithms automatically identify the unique contours and patterns of warp-knitted lace, enabling accurate and adaptive edge trimming without the need for manual positioning.
High-Speed Galvo Laser Processing
Equipped with a high-performance galvanometer laser system for fast, precise, and consistent trimming. The non-contact laser process preserves delicate lace structures while delivering clean cutting results.
Simultaneous Dual-Edge Trimming
Both sides of the lace are trimmed simultaneously in a single process, ensuring uniform edge quality, improved productivity, and stable processing accuracy across the entire roll.
Continuous Roll-to-Roll Automation
From unwinding and laser trimming to waste collection and rewinding, the entire workflow is fully automated for continuous roll-to-roll production with minimal manual intervention.
Automatic Tension Control & Web Guiding
Integrated tension control and automatic edge-correction systems maintain stable fabric feeding and precise alignment, preventing distortion or deviation during high-speed processing.
Clean Processing with Waste Collection
A high-power vacuum extraction system efficiently removes smoke and dust generated during cutting, while the automatic waste collection system keeps the production environment clean and organized.
Workflow
From Unwinding to Intelligent Laser Trimming and Automatic Rewinding - A Fully Integrated Roll-to-Roll Processing Solution
Unwinding Section
Laser Trimming Section
Rewinding Section
This Is the Main Heading You Can Edit
Lorem ipsum consec tetur adipiscing elit.
Videos
Watch our machines in action and see how laser cutting transforms production workflows
Technical Specifications
Explore detailed specifications to better understand performance, speed, and compatibility.
| Model No. | ZJJF(3D)-320LD | ||
|---|---|---|---|
| Laser Type | CO2 RF Metal Laser | Laser Power | 150W |
| Max Processing Width | 3200mm (126") | Machine Footprint | 4000mm x 4000mm (157.5" x 157.5") |
| Laser Head | Galvo Scanner | Focusing system | 3D Dynamic Focusing |
| Camera Type | Industrial Camera | Camera Sampling Frame Rate | 10F/s |
| Camera Maximum Field of View | 200mm (7.8") | Processing Pattern Width | 160mm (6.3") |
| Pattern Tilt Angle | <27° | Maximum Cutting Delay | 200ms |
| Maximum Feeding Speed | 18m/min | Drive System | Servo Motor + Synchronous Belt |
| Power Supply | AC380V±5% 50/60Hz | Total Power | 7KW |
Sample Gallery
Browse real samples produced by our systems to see the quality and versatility of laser cutting
Interested in this solution?
If you need any further information or a detailed estimate, do not hesitate to contact one of our experts who will offer you the solution that best suits your needs and will guide you through the purchase process.
